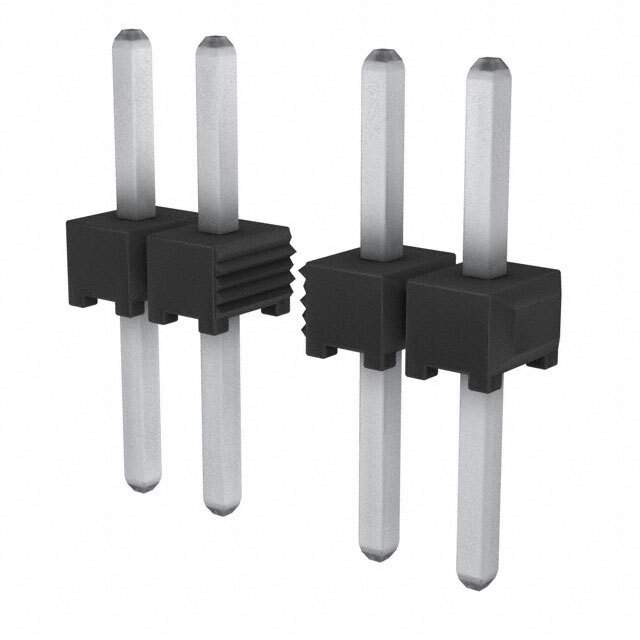

TMM-147-01-T-S

Name: TMM-147-01-T-S
Brand: Samtec Inc.
SKU: 372424
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-147-01-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER 47POS SNGL 2MM T/H
Datasheet	TMM-147-01-T-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Board or Cable
Shrouding	Unshrouded
Number of Positions	47
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Contact Length - Mating	0.126" (3.20mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	0.323" (8.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C to 105°C
Insulation Color	Black
Current Rating	3.2A per Contact
Win Source Part Number	130456-TMM-147-01-T-S
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian TMM-147-01-T-S CAD Model

Description

The Samtec Inc. 130456-TMM-147-01-T-S is a header connector with 47 positions and a current rating of 3.2A per contact.

Manufacturer: Samtec Inc.
Positions: 47
Current Rating: 3.2A per contact
Type: Header Connector
Shrouded: Unshrouded
Contact Shape: Square
Application: Board to Board or Cable
Mounting: Through Hole
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch-Mating: 0.079" (2.00mm)
Contact Finish: Tin
Temperature Range: -55°C to 105°C
Packaging: Tube/Rail
Supply and Demand: Limited
