Same model may have multiple batches, images only for reference.

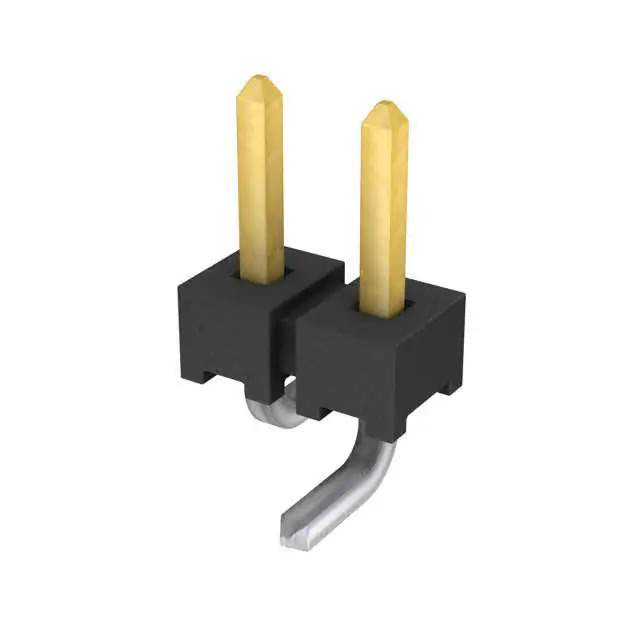

TMM-102-06-F-S-SM Real Image
Same model may have multiple batches, images only for reference.

TMM-102-06-F-S-SM

Part No TMM-102-06-F-S-SM
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description 2MM TERMINAL STRIP / Connector Header Surface Mount 2 position 0.079" (2.00mm)
Datasheet
TMM-102-06-F-S-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TMM
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.168" (4.27mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.2A per Contact
Base Product Number TMM-102
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 807380-TMM-102-06-F-S-SM
Ultra Librarian 3D Model Ultra Librarian TMM-102-06-F-S-SM CAD Model

Description

The TMM-102-06-F-S-SM is a male pin header connector from Samtec Inc.

  • Series: TMM
  • Positions: 2
  • Features: None
  • Positions Loaded: All
  • Rows: 1
  • Termination Type: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Style: Board to Board or Cable
  • Pitch: 0.079" (2.00mm)
  • Contact Finish (Mating): Gold, 3.00µin (0.076µm)
  • Post Contact Finish: Tin
  • Insulation Color: Black
  • Mounting Type: Surface Mount
  • Shrouded: Unshrouded
  • Insulation Height: 0.059" (1.50mm)
  • Contact Shape: Square
  • Temperature Range: -55°C to 125°C
  • Contact Length (Mating): 0.168" (4.27mm)
  • MSL Level: 1
  • HTSUS Code: 8536.69.4040
  • Base Product Number: TMM-102
  • Status: Active
  • California Prop 65: Yes
