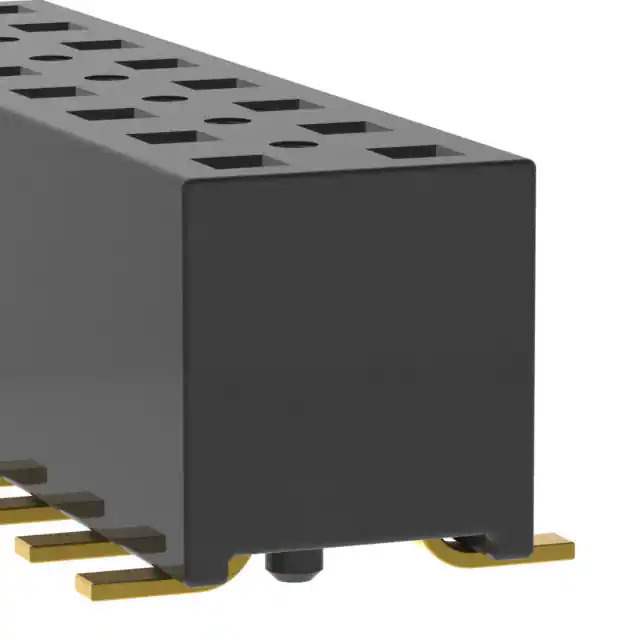

Same model may have multiple batches, images only for reference.

TLE-117-01-G-DV-A-P-TR

Name: TLE-117-01-G-DV-A-P-TR
Brand: Samtec Inc.
SKU: 899870
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLE-117-01-G-DV-A-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 34POS 0.079 GOLD SMD / 34 Position Receptacle, Pass Through Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	TLE
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	34
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.177" (4.50mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Features	Board Guide, Pick and Place
Current Rating (Amps)	3.2A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	TLE-117
Standard Package	650 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	899870-TLE-117-01-G-DV-A-P-TR
Ultra Librarian 3D Model	Ultra Librarian TLE-117-01-G-DV-A-P-TR CAD Model

Alternative Products

Description

The TLE series is a line of rectangular connectors designed for board-to-board or cable applications.

Part Description: TLE-117-01-G-DV-A-P-TR
Connector Type: Receptacle
Gender: Female
Number of Positions: 34
Mounting Type: Surface Mount
Pitch: 0.079" (2.00mm)
Contact Material: Phosphor Bronze
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Insulation Material: Black Liquid Crystal Polymer (LCP)
Operating Temperature: -55°C to 125°C
Package Type: Tape & Reel
Standard Package Quantity: 650
