Same model may have multiple batches, images only for reference.

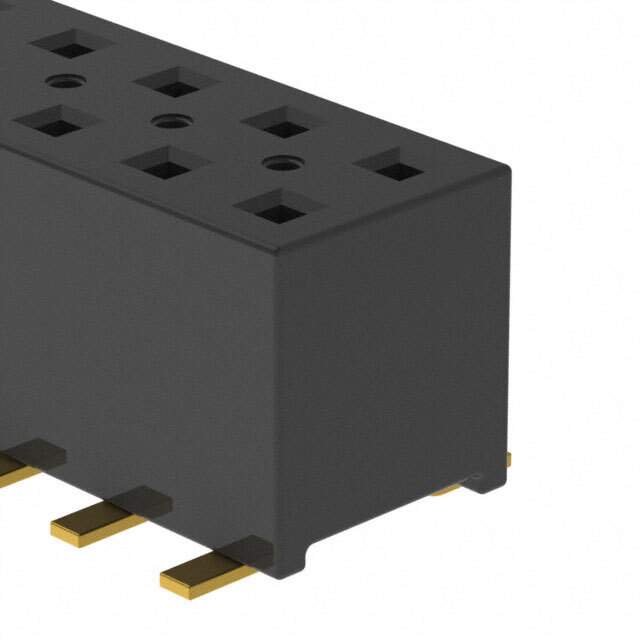

TLE-110-01-G-DV Real Image
Same model may have multiple batches, images only for reference.

TLE-110-01-G-DV

Part No TLE-110-01-G-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20POS 0.079 GOLD SMD  /  20 Position Receptacle, Pass Through Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet
TLE-110-01-G-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series TLE
Package Bulk
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 3.2A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number TLE-110
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1251-10
Standard Package 1
Win Source Part Number 1100216-TLE-110-01-G-DV
Ultra Librarian 3D Model Ultra Librarian TLE-110-01-G-DV CAD Model

Description

The Samtec Inc. 1100216-TLE-110-01-G-DV is a rectangular connector designed for board-to-board or cable style usage.

  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions Loaded: 20
  • Number of Rows: 2
  • Pitch-Mating: 0.079" (2.00mm)
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Standard Package: 1
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Row Spacing: 0.079" (2.00mm)
  • Insulation Height: 0.177" (4.50mm)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Current Rating: 2A per contact
  • MSL Level: Not applicable
  • REACH: Unaffected
