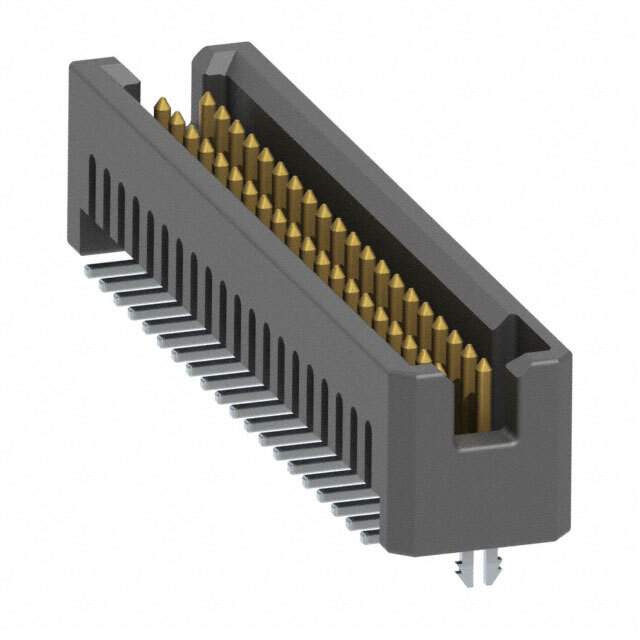

TFM-120-02-S-D-LC-P-TR

Name: TFM-120-02-S-D-LC-P-TR
Brand: Samtec Inc.
SKU: 812232
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TFM-120-02-S-D-LC-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 40POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.131" (3.33mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Lock, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.9A per Contact
Voltage Rating	275VAC
Manufacturer Pack Quantity	325
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	812235-TFM-120-02-S-D-LC-P-TR
Ultra Librarian 3D Model	Ultra Librarian TFM-120-02-S-D-LC-P-TR CAD Model

Alternative Products

Description

The Samtec TFM-120-02-S-D-LC-P-TR is a board-to-board or cable header connector with 40 positions loaded from Samtec.

Positions: 40
Pitch: 0.050" (1.27mm)
Row Spacing: 0.050" (1.27mm)
Shrouded Design: 4 wall
Insulation Material: Liquid Crystal Polymer (LCP)
Voltage Rating: 275VAC
Current Rating: 2.9A per contact
Temperature Range: -55°C to 125°C
Packaging: Reel
Pieces per Package: 325
Mounting: Surface Mount
