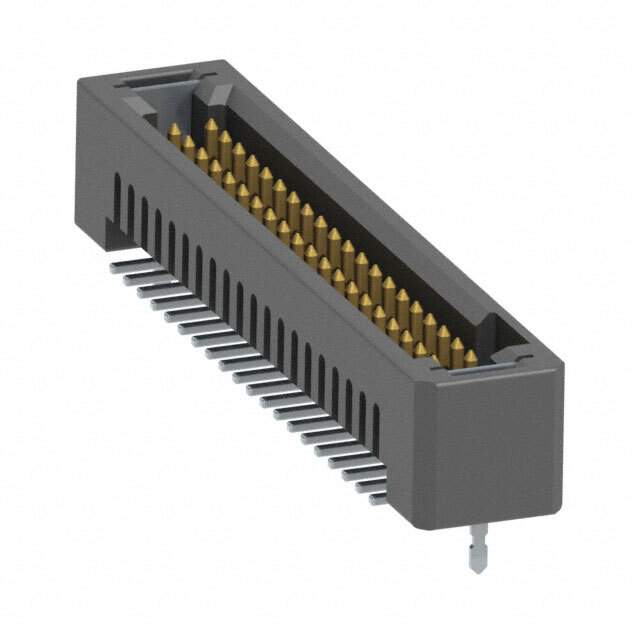

Same model may have multiple batches, images only for reference.

TFM-120-02-L-D-WT-K-TR

Name: TFM-120-02-L-D-WT-K-TR
Brand: Samtec Inc.
SKU: 936423
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TFM-120-02-L-D-WT-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 40POS 1.27MM
Datasheet	TFM-120-02-L-D-WT-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	8 Weeks
Features	Connector Header Surface Mount 40 position 0.050" (1.27mm)
Manufacturer	Samtec Inc.
Series	Tiger Eye™ TFM
Package	Reel - TR
Operating Temperature Range	-55°C ~ 125°C
Mounting	Surface Mount
Family Name	TFM-120
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM14701TR, SAM14701DKR, SAM14701CT, TFM-120-02-L-D-WT-K-TR-ND
Quantity per package	325
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	936423-TFM-120-02-L-D-WT-K-TR
Ultra Librarian 3D Model	Ultra Librarian TFM-120-02-L-D-WT-K-TR CAD Model

Alternative Products

Description

The Tiger Eye™ TFM connector header is a surface mount 40 position 0.050" (1.27mm) product from Samtec Inc.

Category: connectors
Series Name: TFM-120
Operating Temperature Range: -55°C ~ 125°C
Package: reel - TR
HTSUS: 8536.69.4040
Family Name: TFM-120
