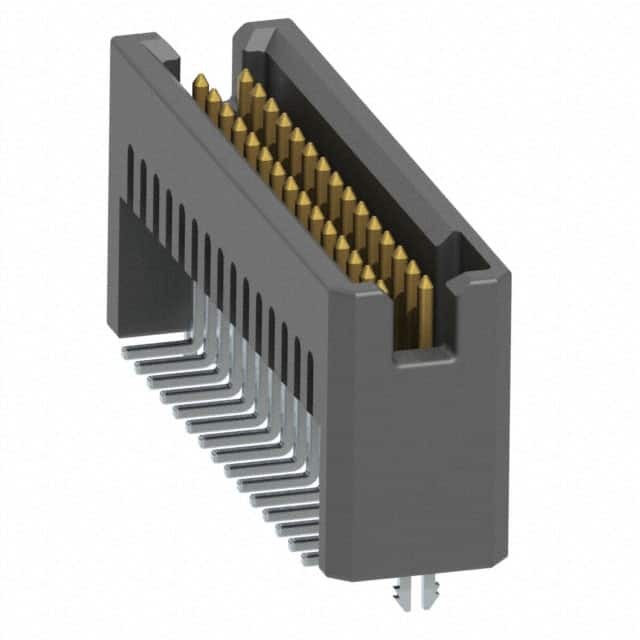

TFM-115-22-L-D-LC

Name: TFM-115-22-L-D-LC
Brand: Samtec Inc.
SKU: 899519
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TFM-115-22-L-D-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 30POS 1.27MM / Connector Header Surface Mount 30 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFM
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.139" (3.53mm)
Insulation Height	0.360" (9.14mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Lock
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.9A per Contact
Voltage Rating	275VAC
Base Product Number	TFM-115
Standard Package	26 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	899519-TFM-115-22-L-D-LC
Ultra Librarian 3D Model	Ultra Librarian TFM-115-22-L-D-LC CAD Model

Alternative Products

Description

The TFM-115-22-L-D-LC is a 30-position male pin header from Samtec Inc.

Series: Tiger Eye™ TFM
Type: Rectangular connector
Application: Board-to-board or cable
Fastening Type: Push-pull
Termination: Solder
Pitch: 0.050" (1.27mm)
Contact Finish: Gold
Contact Material: Phosphor bronze
Insulation Material: Black liquid crystal polymer (LCP)
Mounting: Surface mountable
Shrouding: Shrouded - 4 wall
Temperature Range: -55°C to 125°C
Voltage Rating: 275VAC
Status: Active product
Standard Package: 26 pcs
Flammability Rating: UL94 V-0
