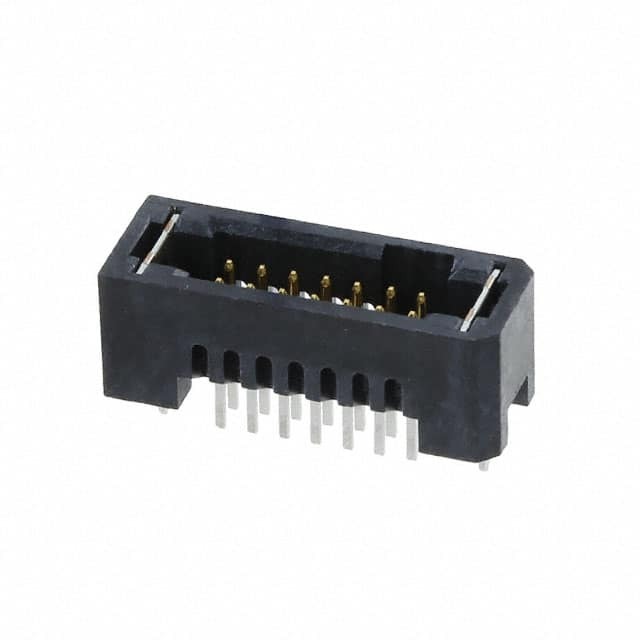

Same model may have multiple batches, images only for reference.

TFM-107-01-L-D-WT

Name: TFM-107-01-L-D-WT
Brand: Samtec Inc.
SKU: 849420
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TFM-107-01-L-D-WT
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 1.27MM
Datasheet	TFM-107-01-L-D-WT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFM
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.131" (3.33mm)
Contact Length - Post	0.078" (1.98mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.9A per Contact
Voltage Rating	275VAC
Base Product Number	TFM-107
Standard Package	35 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	849420-TFM-107-01-L-D-WT
Ultra Librarian 3D Model	Ultra Librarian TFM-107-01-L-D-WT CAD Model

Description

The TFM-107-01-L-D-WT is a header connector from Samtec Inc.

Series: Tiger Eye™ TFM
Connector Type: Rectangular Connector
Application: Board-to-Board or Cable
Pitch: 0.050" (1.27mm)
Positions: 14
Feature: Solder Retention
Contact Material: Phosphor Bronze
Contact Finish: Gold
Insulation Material: Black Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Insulation Height: 0.220" (5.60mm)
Operating Temperature Range: -55°C to 125°C
