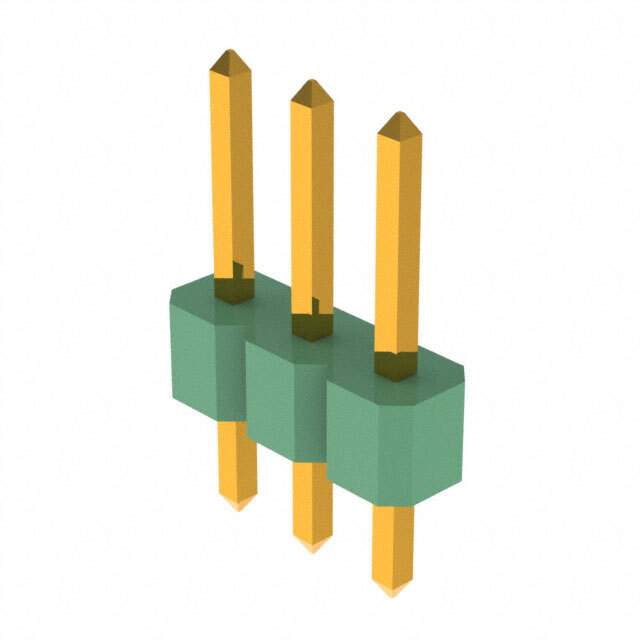

Same model may have multiple batches, images only for reference.

AMC03SAAN

Name: AMC03SAAN
Brand: Sullins Connector Solutions
SKU: 1044875
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AMC03SAAN
Manufacturer	Sullins Connector Solutions
Catalog	Circular Connectors - Housings
Description	CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Datasheet	AMC03SAAN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Package	Bulk
Product Status	Obsolete
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.450" (11.43mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Gold
Contact Material	Beryllium Copper
Insulation Material	Polyphenylene Sulfide (PPS)
Temperature Range - Operating	-65°C ~ 200°C
Material Flammability Rating	UL94 V-0
Insulation Color	Green
Current Rating (Amps)	3A
Contact Finish Thickness - Post	10.0µin (0.25µm)
Base Product Number	AMC03
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	S9661-03
Standard Package	1
Win Source Part Number	1044875-AMC03SAAN
Ultra Librarian 3D Model	Ultra Librarian AMC03SAAN CAD Model

Description

The Sullins Connector Solutions AMC03SAAN is a header connector with male pins, designed for use in electronic devices.

Positions: It has a number of positions of 3.
Mounting Type: and is soldered onto the board.
Pitch: The header connector has a pitch of 0.100 inches.
Shrouded: and is unshrouded.
Contact Finish: It has a contact finish of gold.
Contact Finish Thickness: and a contact finish thickness of 30.0μin for mating and 10.0μin for post.
Temperature Range: The AMC03SAAN has a temperature range of -65°C to 200°C.
Status: The header connector is obsolete.
