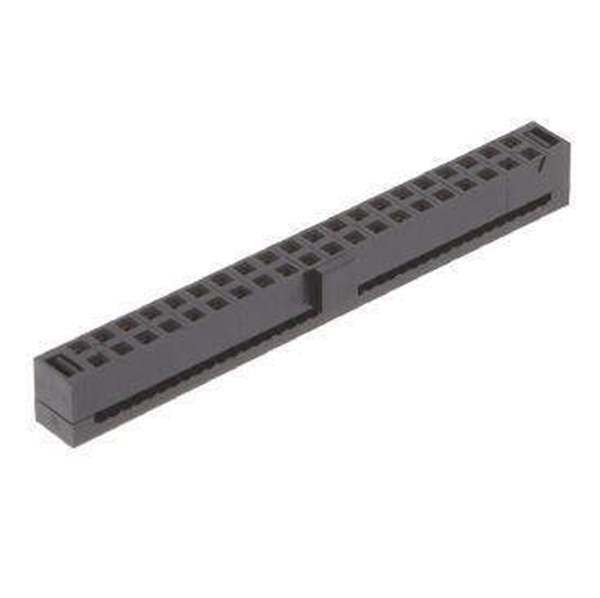

TCSD-20-01-F-NSamtec Inc.
Same model may have multiple batches, images only for reference.

TCSD-20-01-F-N

Part No TCSD-20-01-F-N
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 40POS IDC 28AWG GOLD
Datasheet
TCSD-20-01-F-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Samtec Inc.
Category Connectors, Interconnects Rectangular Connectors Free Hanging, Panel Mount
Packaging Tube
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 40
Pitch 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Fastening Type Push-Pull
Cable Termination IDC
Wire Type Ribbon Cable
Win Source Part Number WS1308358-TCSD-20-01-F-N
Ultra Librarian 3D Model Ultra Librarian TCSD-20-01-F-N CAD Model

Description

40 Position Rectangular Receptacle Connector IDC Gold 28 AWG
