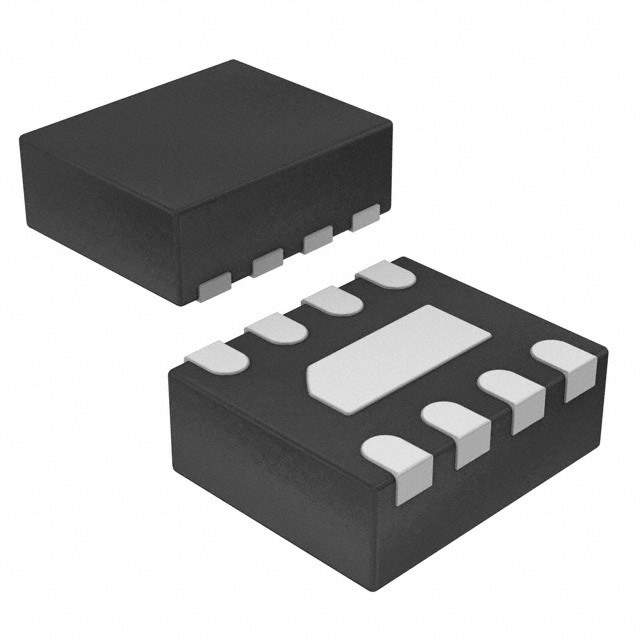

SIP32414DNP-T1-GE4 Real Image
Same model may have multiple batches, images only for reference.

SIP32414DNP-T1-GE4

Part No SIP32414DNP-T1-GE4
Manufacturer Vishay
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC SW W/CTRL SLEW RATE 8TDFN
Datasheet
SIP32414DNP-T1-GE4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Reel - TR
Status Active
Switch Type General Purpose
Number of Outputs 2
Output Type N-Channel
Voltage - Load 1.1 V to 5.5 V
Supply Voltage - Operating Not Required
Current - Output (Max) 2.4A
Rds On (Typ) 62 mOhm
Input Type Non-Inverting
Features Load Discharge, Slew Rate Controlled
Fault Protection Reverse Current
Temperature Range - Operating -40°C to 125°C (TJ)
Case / Package 8-TDFN (2x2)
Win Source Part Number 028749-SIP32414DNP-T1-GE4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SIP32414DNP-T1-GE4 CAD Model

Description

The Vishay SIP32414DNP-T1-GE4 is a load discharge and slew rate controlled integrated circuit that is widely used in electronic circuits.

  • Input Type: Non-inverting
  • Feature: Reverse current fault protection
  • Outputs: Two
  • Maximum Current Output: 2.4A
  • Voltage Load Range: 1.1V to 5.5V
  • Rds On (Typ): 62 mOhm
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Package Type: 8-TDFN (2x2)
  • Popularity: Medium
