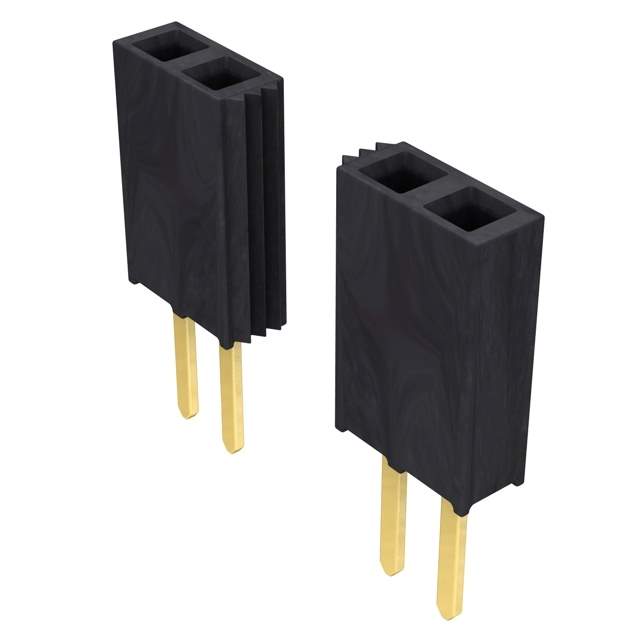

The SSW-136-02-G-S is a socket strip connector manufactured by Samtec Inc., part of their SSW series. These connectors are known for providing reliable board-to-board connections. The SSW-136-02-G-S is designed for through-hole mounting onto printed circuit boards (PCBs), offering a secure and stable connection point for various electronic applications.

Applications

• Board-to-board Connections: Connecting two PCBs together in electronic devices and systems.
• Signal Routing: Used for efficiently routing signals between different parts of a circuit.
• Prototyping: Suitable for use in prototyping circuits due to its ease of connection and disconnection.
• Consumer Electronics: Integrated into consumer electronic products for internal board connections.
• Industrial Equipment: Used in industrial equipment for reliable signal transmission.

Features

• Number of Positions: 36 (double row, 18 per row), providing a high number of connection points.
• Pitch: 0.100" (2.54 mm) pitch, ensuring compatibility with standard PCB grid patterns.
• Mounting Type: Through-hole mounting offering a stable and secure connection to the PCB.
• Row Spacing: 0.100" (2.54 mm) standard row spacing for easy integration.
• Body Orientation: Straight, designed for vertical board stacking or parallel board connections.
• Insulator Material: Black Liquid Crystal Polymer (LCP) insulator providing excellent high-temperature performance and chemical resistance.
• Contact Material: Phosphor Bronze contacts offering good conductivity and durability.
• Plating: Gold plating on the contacts ensuring reliable electrical performance and corrosion resistance.

Benefits

• Reliable Connection: Gold-plated contacts ensure a stable and dependable electrical connection, minimizing signal loss and guaranteeing long-term reliability.
• Durable Construction: The LCP insulator and Phosphor Bronze contacts provide excellent durability, ensuring a long service life.
• Easy Installation: Through-hole mounting simplifies the installation process, particularly for prototyping and small production runs.
• Versatile Application: Suitable for a wide range of board-to-board connection needs, from prototyping to production.
• High-Temperature Performance: The LCP insulator material offers excellent performance in high-temperature environments.

The SSW-136-02-G-S socket strip connector is a robust and versatile solution for board-to-board connectivity, offering reliable performance in a variety of applications. Its durable construction, gold-plated contacts, and high number of positions make it a suitable choice for demanding electronic applications.
