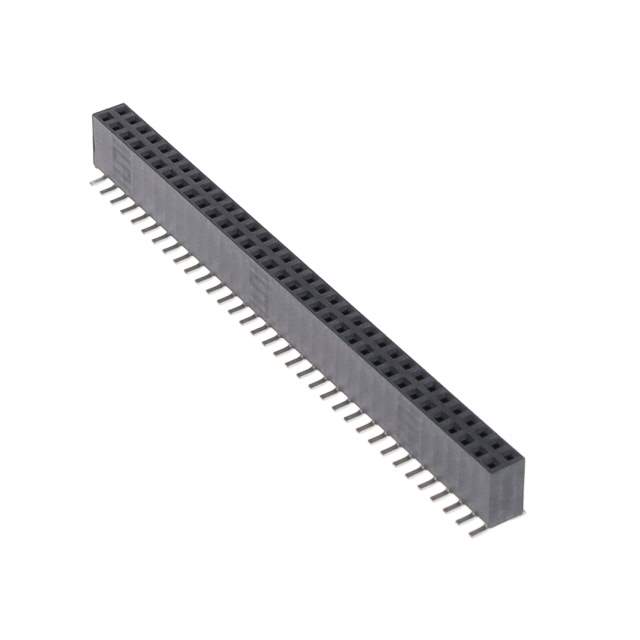

The SSW-134-22-F-D-VS is a Samtec Inc. socket strip connector from the SSW series. This connector is designed for board-to-board connections, offering a reliable and robust solution for various electronic applications.

Applications

• Board-to-board connections in electronic assemblies
• Signal routing in PCBs
• Interconnects in communication equipment
• Industrial control systems
• Medical devices

Features

• Pitch: 2.54 mm (0.100")
• Number of Contacts: 68 (34 per row x 2 rows)
• Number of Rows: 2
• Termination Style: Through Hole
• Body Orientation: Straight
• Contact Material: Phosphor Bronze
• Insulator Material: Black UL 94V-0 Polyester
• Plating: Gold plated contacts for enhanced conductivity and durability
• Voltage Rating: 600 VAC
• Current Rating: 3 A
• Mates with: TSM Series

Benefits

• Reliable Connection: Gold-plated contacts ensure a stable and low-resistance connection, improving signal integrity.
• Versatile Application: Suitable for a wide range of board-to-board connections.
• Durable Construction: The polyester insulator provides good electrical and mechanical properties.
• Easy Integration: Through-hole termination simplifies the assembly process.

The SSW-134-22-F-D-VS socket strip connector is designed for through-hole mounting on PCBs. The 'VS' indicates vertical surface mount compatibility. It is commonly used in applications where a standard 0.100" pitch is required for board-to-board connections. The connector's gold-plated contacts ensure reliable performance and resistance to corrosion, making it a suitable choice for various operating environments. The 'F' in the part number likely refers to the plating specification, usually Gold flash. It mates with the TSM series headers from Samtec.
