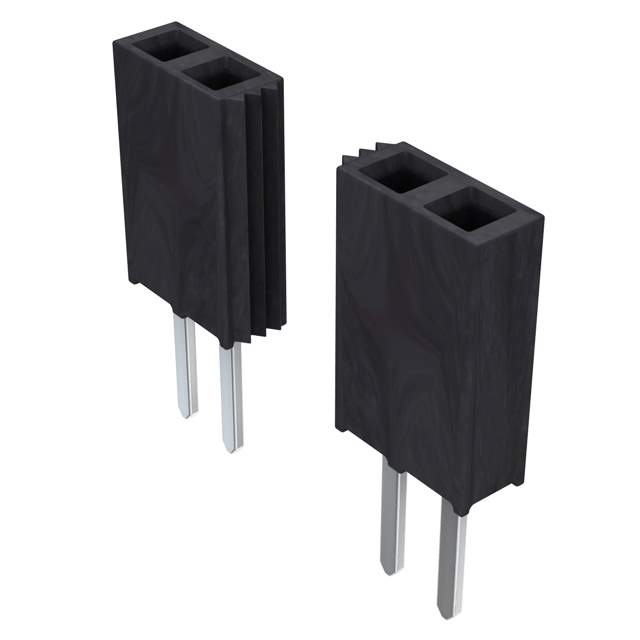

SSW-126-02-T-D Real Image
Same model may have multiple batches, images only for reference.

SSW-126-02-T-D

Part No SSW-126-02-T-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSW-126-02-T-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSW
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 52
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.194" (4.93mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSW-126
Other Names SAM1221-26
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1288331-SSW-126-02-T-D
Ultra Librarian 3D Model Ultra Librarian SSW-126-02-T-D CAD Model

Description

The SSW-126-02-T-D is a rectangular connector designed for board-to-board or cable applications.

  • Connector Type: receptacle
  • Positions: 52
  • Positions Loaded: all
  • Contact Type: forked
  • Rows: two
  • Termination Type: solder
  • Fastening Type: push-pull
  • Package: bulk
  • Contact Material: phosphor bronze
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Color: black
  • Pitch (Mating): 0.100" (2.54mm)
  • Contact Finish (Mating): tin
  • Contact Finish (Post): tin
  • Insulation Height: 0.335" (8.51mm)
  • Contact Shape: square
  • Temperature Range (Operating): -55°C to 105°C
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
  • Current Rating: 4.7A per contact
