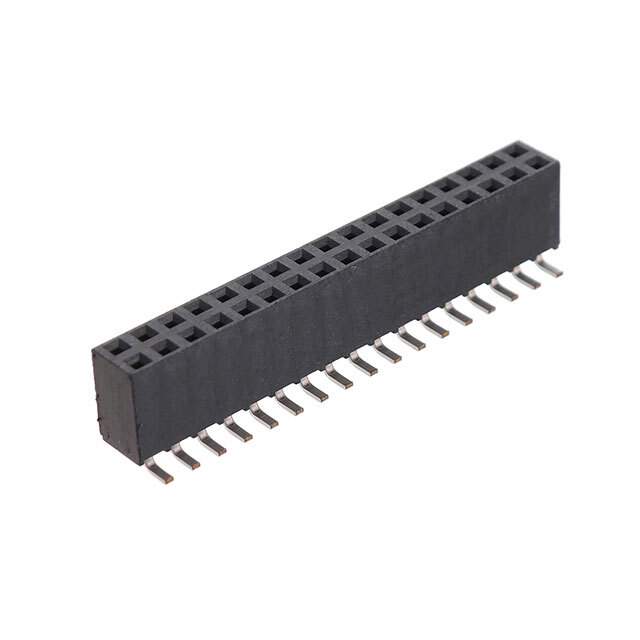

SSW-117-22-S-D-VS

Name: SSW-117-22-S-D-VS
Brand: Samtec Inc.
SKU: 1288079
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSW-117-22-S-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-117-22-S-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	34
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-117
Standard Package	12
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288079-SSW-117-22-S-D-VS
Ultra Librarian 3D Model	Ultra Librarian SSW-117-22-S-D-VS CAD Model

Description

The SSW series rectangular connector is a receptacle type connector with forked contact type.

Positions: 34
Rows: 2
Termination: Solder
Contact Finish Mating: Gold (30.0µin or 0.76µm)
Contact Finish Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Insulation Height: 0.335" (8.51mm)
Pitch Mating: 0.100" (2.54mm)
Connector Style: Board to Board or Cable
Mounting: SMD (SMT)
Manufacturer: Samtec Inc.
Base Product Number: SSW-117
Package: Tube
Current Rating: 4.7A per Contact
Temperature Range: -55°C ~ 125°C
