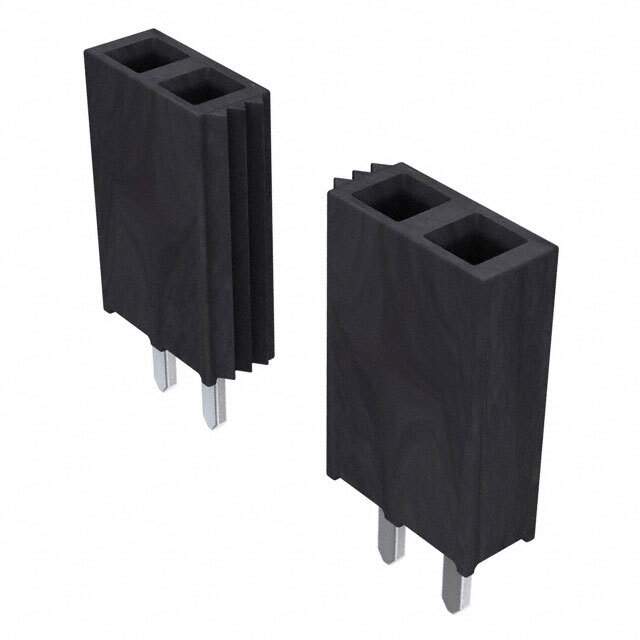

The SSW-110-01-S-S is a rectangular connector produced by Samtec Inc. This connector is part of the SSW series and has ten positions.

• Positions: 10
• Connector Type: Receptacle
• Contact Type: Forked
• Positions Loaded: All
• Rows: 1
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Bulk
• Contact Material: Phosphor Bronze
• Voltage Rating: Unspecified
• Mated Stacking Heights: Unspecified
• Ingress Protection: Not Applicable
• Material Flammability Rating: Not Applicable
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to Board or Cable
• Pitch-Mating: 0.100 inches (2.54mm)
• Contact Finish-Mating: Gold
• Contact Finish Thickness-Mating: 30.0 microns (0.76 microns)
• Contact Finish-Post: Tin
• Insulation Color: Black
• Mounting Type: Through-Hole
• Contact Length-Post: 0.104 inches (2.64mm)
• Insulation Height: 0.335 inches (8.51mm)
• Contact Shape: Square
• Temperature Range: -55 degrees Celsius to 125 degrees Celsius
