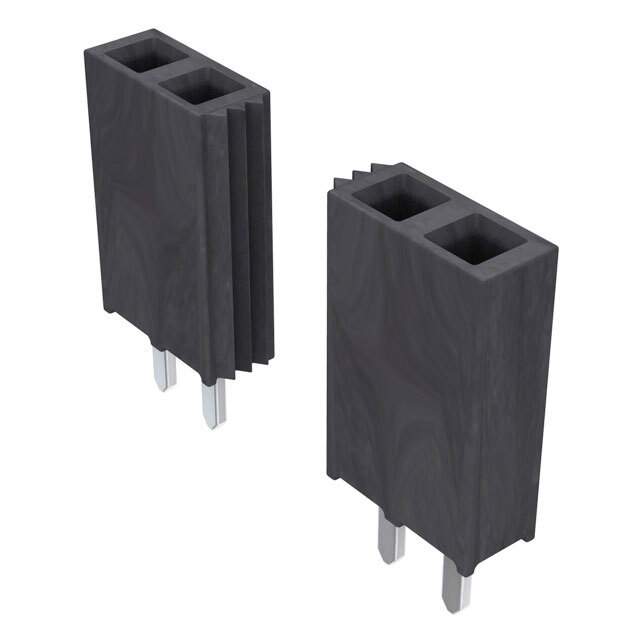

SSW-109-01-T-S

Name: SSW-109-01-T-S
Brand: Samtec Inc.
SKU: 1200208
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-109-01-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 9POS 0.1 TIN PCB / 9 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Datasheet	SSW-109-01-T-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	9
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.104" (2.64mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-109
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1213-09
Standard Package	1
Win Source Part Number	1200208-SSW-109-01-T-S
Ultra Librarian 3D Model	Ultra Librarian SSW-109-01-T-S CAD Model

Alternative Products

Description

This electronic component is a rectangular connector manufactured by Samtec Inc. The Win Source Part Number for this product is 1200208-SSW-109-01-T-S and it falls under the category of Connectors, Interconnects > Rectangular Connectors - Headers, Receptacles, Female Sockets. This product is a receptacle type connector with forked contact and has 9 positions loaded. It has a pitch-mating of 0.100 inches and a contact finish-mating of tin. The current rating for this product is 4.7A per contact.
