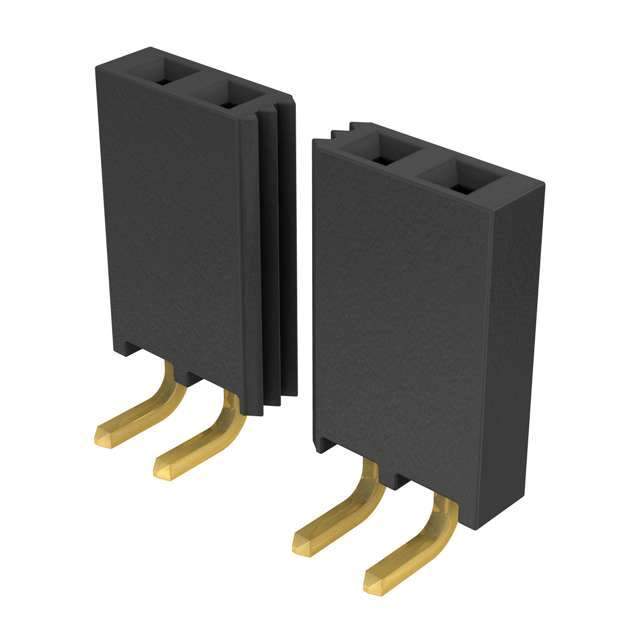

The SSQ-145-02-G-S-RA is a high-quality, right-angle socket strip from Samtec's SSQ series. This connector is designed for board-to-board connections, offering a reliable and space-saving solution for various electronic applications. With its robust construction and gold-plated contacts, it ensures optimal signal integrity and long-term performance.

Applications

• Telecommunications equipment
• Data networking systems
• Industrial automation
• Medical devices
• Testing and measurement equipment
• Board-to-board stacking applications

Features

• Number of Contacts: 45
• Pitch: 0.635mm (0.025")
• Row Spacing: Single Row
• Termination Style: Right-Angle Through-Hole
• Contact Material: Phosphor Bronze
• Contact Plating: Gold over Nickel
• Insulator Material: Liquid Crystal Polymer (LCP)
• Operating Temperature Range: -55°C to +125°C

Benefits

• High Density: The 0.635mm pitch allows for a high density of contacts in a small space, maximizing board real estate.
• Reliable Connection: Gold-plated contacts ensure a reliable, corrosion-resistant connection, minimizing signal loss and maximizing performance.
• Durable Construction: The LCP insulator provides excellent electrical and mechanical properties, ensuring long-term durability.
• Right-Angle Configuration: The right-angle termination allows for space-saving board stacking and perpendicular connections.
• RoHS Compliant: This product meets RoHS compliance standards, ensuring environmental responsibility.
• Easy Integration: Standard through-hole termination simplifies the soldering process and allows for easy integration into existing designs.

Additional Details

The SSQ-145-02-G-S-RA features a black LCP insulator, providing excellent electrical insulation and high-temperature performance. The gold plating on the phosphor bronze contacts ensures optimal conductivity and resistance to corrosion. This connector is designed for automated placement and soldering processes, making it suitable for high-volume manufacturing. Its low-profile design minimizes the overall height of the connection, making it ideal for applications where space is limited.

This connector is often used in conjunction with Samtec's TSM series of terminal strips to create a robust and reliable board-to-board connection. The SSQ series is known for its high quality and performance, making it a popular choice for demanding applications.
