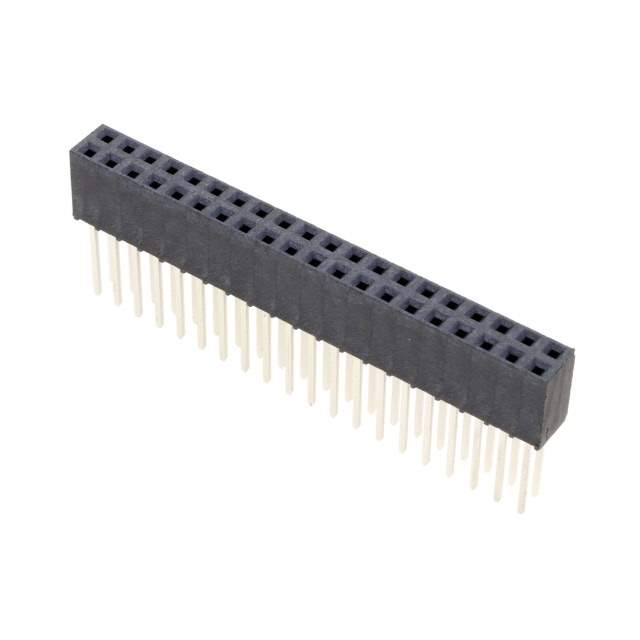

The SSQ-120-03-F-D is a Samtec square post socket strip with a 2.54mm pitch, designed for board-to-board connections. It features a dual-row configuration with 20 contacts per row. The 'F' likely indicates a flash gold plating on the contacts for enhanced conductivity and corrosion resistance, while the 'D' signifies its dual-row design, increasing connection density. This component is suitable for a variety of electronic applications where reliable interconnections are essential.

Applications

• Board-to-board connections: Provides a secure and efficient means of connecting PCBs in electronic devices.
• Industrial control systems: Used in automation equipment for signal and power transmission.
• Telecommunications equipment: Employed in networking and communication devices.
• Medical instruments: Ensures reliable connectivity in critical medical applications.
• Consumer electronics: Connects internal components in various electronic gadgets.

Features

• 2.54mm pitch: Standard spacing compatible with a wide range of headers and PCBs.
• Dual-row configuration: Offers a higher connection density in a compact footprint.
• 20 contacts per row: Provides a significant number of connection points for signal and power.
• 'F' Plating (Likely Flash Gold): Enhances conductivity and provides excellent corrosion resistance.
• Dual-Row ('D'): Denotes a dual-row design for increased density.
• High-Temperature Plastic Insulator: Withstands reflow soldering temperatures without deformation.

Benefits

• Reliable Electrical Connection: Ensures a stable and consistent connection between boards.
• High Connection Density: Dual-row design maximizes the number of connections within a limited space.
• Durable and Robust: Constructed with high-quality materials for long-lasting performance.
• Easy Installation: Standard pitch simplifies the soldering and assembly process.
• Versatile Application: Suitable for a broad range of electronic devices and systems.

Additional Details

The Samtec SSQ series is well-regarded for its reliable board-to-board connectivity solutions. The insulator is made from high-temperature thermoplastic, making it suitable for reflow soldering. Always refer to the manufacturer's datasheet for accurate current ratings and other electrical specifications. RoHS compliance ensures it adheres to environmental standards. It is critical to verify the precise plating type associated with the 'F' designation in the datasheet. When selecting a mating connector, make sure it is compatible with the pin count and dimensions of the SSQ-120-03-F-D.
