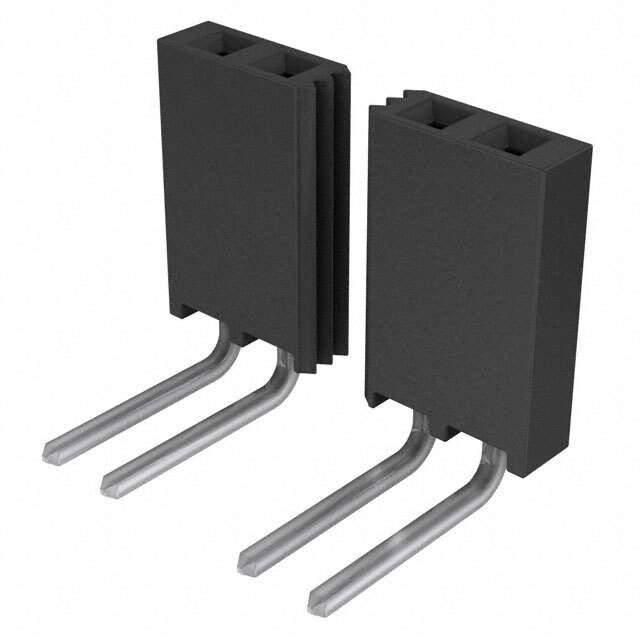

The SSQ-113-03-T-S-RA is a Samtec Inc. socket strip connector, belonging to the SSQ series, which is known for its high-quality, square post interconnect solutions. This particular model features a right-angle design, making it ideal for applications requiring perpendicular board connections. It's designed for through-hole mounting, ensuring a mechanically robust and electrically reliable connection to the PCB.

Applications

• Right-Angle Board Connections: Used to connect PCBs at a 90-degree angle, optimizing space utilization within electronic devices.
• Vertical Board Stacking: Enables vertical stacking of PCBs where space is limited.
• Signal Routing: Used for efficient signal routing in confined spaces within electronic systems.
• Prototyping: Suitable for prototyping due to its ease of use and reliable connection.
• Industrial Control Systems: Used in industrial control equipment for secure board-to-board connections.

Features

• Number of Positions: 39 (single row) offering a significant number of connection points in a compact form factor.
• Pitch: 0.100" (2.54 mm) standard pitch for compatibility with common PCB layouts.
• Mounting Type: Through-hole mounting providing a strong mechanical bond to the PCB.
• Row Spacing: Single row configuration.
• Body Orientation: Right-angle allowing for perpendicular board connections.
• Insulator Material: Black Liquid Crystal Polymer (LCP) known for its high-temperature resistance and chemical stability.
• Contact Material: Beryllium Copper for excellent conductivity and spring properties.
• Plating: Gold plating on contacts ensuring reliable electrical performance and corrosion resistance.

Benefits

• Space-Saving Design: Right-angle orientation allows for efficient use of space, especially where vertical stacking is necessary.
• Reliable Electrical Connection: Gold-plated contacts ensure a dependable electrical connection, minimizing signal loss and providing long-term stability.
• Durable Construction: LCP insulator and Beryllium Copper contacts provide excellent durability, ensuring a long service life in demanding applications.
• Easy Installation: Through-hole mounting simplifies installation on the PCB.
• Versatile Application: Suitable for a wide range of applications requiring right-angle board-to-board connections.

The SSQ-113-03-T-S-RA socket strip connector from Samtec offers a space-saving and reliable solution for right-angle board-to-board connectivity. Its robust construction, gold-plated contacts, and right-angle configuration make it an excellent choice for applications where space is limited and reliable performance is critical.
