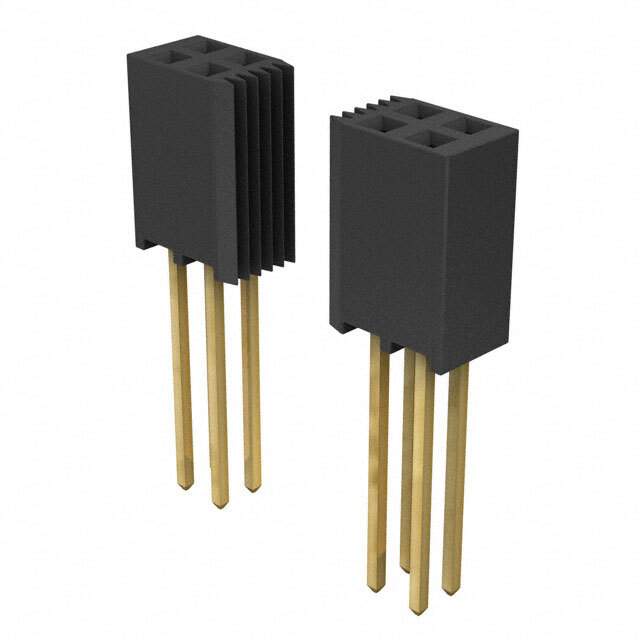

Same model may have multiple batches, images only for reference.

SSQ-110-04-G-D

Name: SSQ-110-04-G-D
Brand: Samtec Inc.
SKU: 1289906
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSQ-110-04-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSQ-110-04-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSQ
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.584" (14.83mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Voltage Rating	465VAC, 655VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SSQ-110
Other Names	SSQ-110-04-G-D,SAM11916
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1289906-SSQ-110-04-G-D
Ultra Librarian 3D Model	Ultra Librarian SSQ-110-04-G-D CAD Model

Description

The Samtec Inc. SSQ-110-04-G-D is a female socket rectangular connector with a SSQ series.

Positions: 20
Rows: Two
Pitch-Mating: 0.100" (2.54mm)
Contact Finish: Gold with a thickness of 20.0µin (0.51µm)
Contact Material: Phosphor Bronze
Application: Suitable for board-to-board or cable style applications
Temperature Range: -55°C to 125°C
