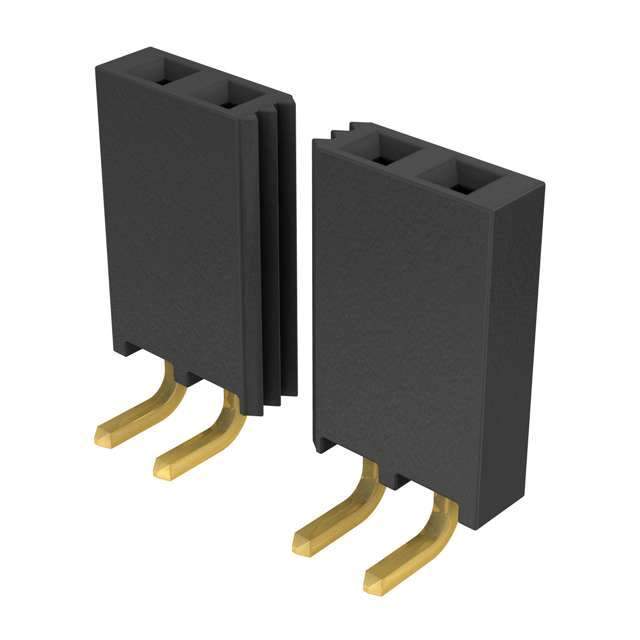

The SSQ series receptacle connector from Samtec Inc. is a board-to-board or cable style connector used in electronic devices.

• Contact Material: Phosphor Bronze
• Voltage Rating: 465VAC and 655VDC
• Contact Type: Forked and has a square shape
• Pitch: 0.100” (2.54mm)
• Orientation: Right-Angled
• Mounting Type: Through-Hole
• Termination: Solder Terminated
• Contact Finish: Gold plated with a thickness of 20.0µin (0.51µm) for mating and 3.00µin (0.076µm) for post
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black color
• Operating Temperatures: -55°C to 125°C
• Flammability Rating: UL94 V-0
• REACH: Unaffected
• Packaging: Bulk packaging
• Standard Package: 1
