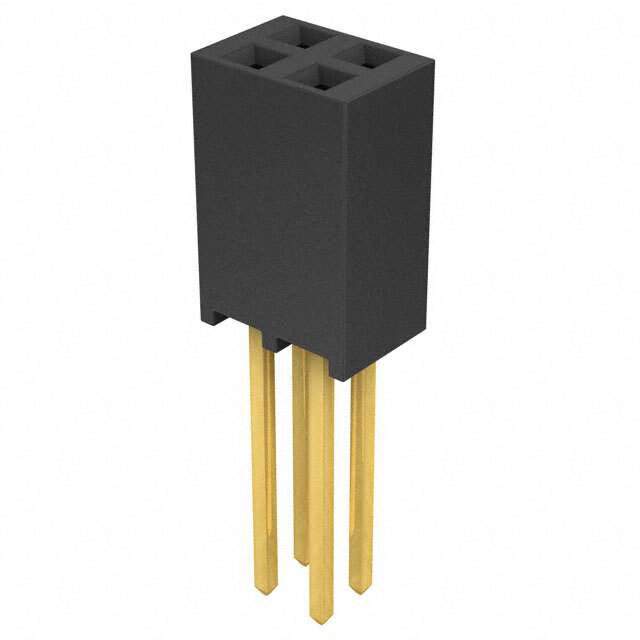

The SSQ series from Samtec Inc. presents a solder termination receptacle connector with a push-pull fastening type.

• Connector Type: forked female socket
• Contact Material: phosphor bronze
• Voltage Rating: 465VAC and 655VDC
• Contact Finish (Mating): gold with a thickness of 20.0µin (0.51µm)
• Contact Finish (Post): gold with a thickness of 3.00µin (0.076µm)
• Insulation Material: liquid crystal polymer (LCP)
• Insulation Color: black
• Pitch-Mating: 0.100" (2.54mm)
• Row Spacing-Mating: 0.100" (2.54mm)
• Contact Shape: square
• Temperature Range: -55°C ~ 125°C
• Style: board-to-board or cable style
• Packaging: bulk
• Standard Package: 1
• Termination: solder
• Fastening Type: push-pull
