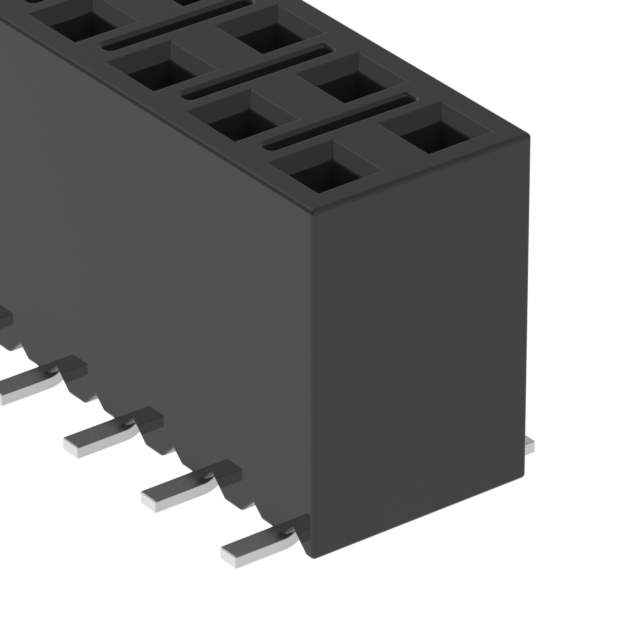

The Samtec Inc. SSM-114-L-DV is a rectangular connector that belongs to the SSM series.

• Connector Type: Receptacle, pass-through connector with a contact type of female socket.
• Positions: 28 positions loaded in two rows.
• Pitch-Mating: 0.100 inches (2.54mm).
• Voltage Rating: 405VAC and 572VDC.
• Current Rating: 5.2A per contact.
• Contact Finish-Mating: Gold with a thickness of 10.0μin (0.25μm).
• Contact Finish-Post: Tin.
• Termination: Solder.
• Fastening Type: Push-pull.
• Insulation Material: Liquid crystal polymer (LCP).
• Insulation Height: 0.290 inches (7.37mm).
• Applications: Suitable for board-to-board or cable style applications.
• Temperature Range: -55°C to 125°C.
