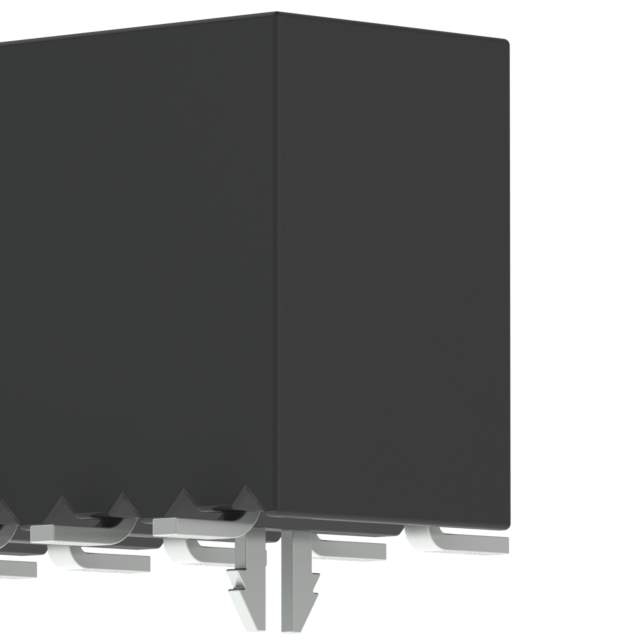

SSM-111-F-DV-LC

Name: SSM-111-F-DV-LC
Brand: Samtec Inc.
SKU: 1291814
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSM-111-F-DV-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSM-111-F-DV-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tube
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	22
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Lock
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-111
Standard Package	20
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291814-SSM-111-F-DV-LC
Ultra Librarian 3D Model	Ultra Librarian SSM-111-F-DV-LC CAD Model

Alternative Products

Description

The Samtec Inc. SSM series features a 22-position receptacle connector, with a female socket contact type and two rows.

Applications: Board-to-board or cable applications
Pitch: 0.100 inches (2.54mm)
Contact Finish: Gold, 3.00µin (0.076µm) for mating, and tin for post
Voltage Rating: 405VAC and 572VDC
Current Rating: 5.2A per contact
Insulation Material: Liquid crystal polymer (LCP)
Mounting: Surface-mounting device (SMD) mounted
Row Spacing: 0.100 inches (2.54mm)
Insulation Height: 0.290 inches (7.37mm)
Contact Shape: Square
Temperature Range: -55°C to 125°C
