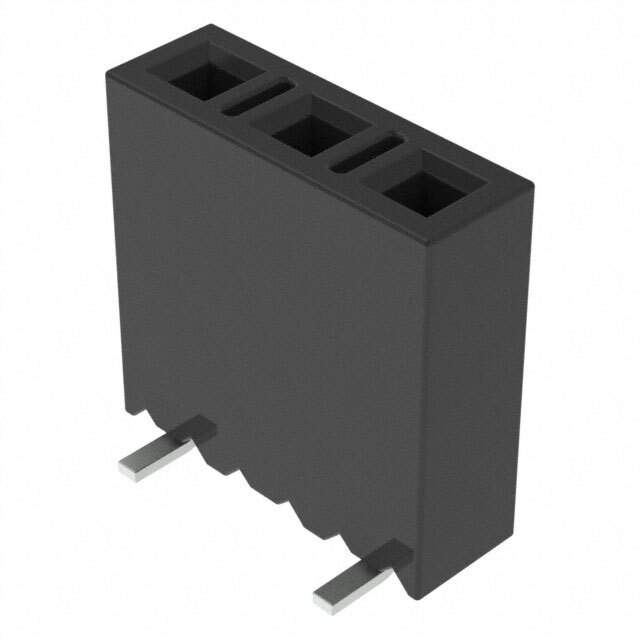

Same model may have multiple batches, images only for reference.

SSM-103-L-SV-K-TR

Name: SSM-103-L-SV-K-TR
Brand: Samtec Inc.
SKU: 1291897
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSM-103-L-SV-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSM-103-L-SV-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tape & Reel
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	3
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-103
Other Names	SAM14586TR,SSM-103-L-SV-K-FR,SAM14586DKR,SSM-103-L-SV-K-TR,SAM14586CT
Standard Package	375
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291897-SSM-103-L-SV-K-TR
Ultra Librarian 3D Model	Ultra Librarian SSM-103-L-SV-K-TR CAD Model

Alternative Products

Description

The SSM-103-L-SV-K-TR is a board-to-board or cable receptacle connector designed for pick and place applications. It has 3 positions and is loaded with all contacts.

Fastening Type: push-pull
Termination: soldered
Voltage Rating: 405 VAC and 572 VDC
Current Rating: 5.2 A per contact
Format: tape and reel
Package Consists of: 375 units
Pitch: 0.100"
Insulation Material: liquid crystal polymer (LCP)
Contact Finish: gold
Contact Finish Thickness: 10.0 µin
Manufacturer: Samtec Inc.
Also Known As: SAM14586TR, SSM-103-L-SV-K-FR, SAM14586DKR, SAM14586CT
