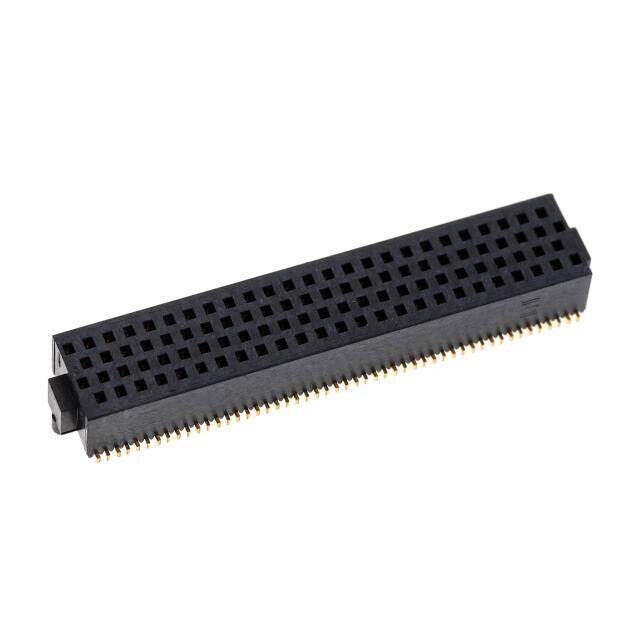

SOLC-125-02-L-Q-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

SOLC-125-02-L-Q-A-K-TR

Part No SOLC-125-02-L-Q-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 100POS 0.05 GOLD SMD / 100 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series FOURRAY™ SOLC
Package Tape & Reel
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 100
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 4
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.160" (4.06mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Guide, Pick and Place
Current Rating (Amps) 2.4A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SOLC-125
Standard Package 450 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 934684-SOLC-125-02-L-Q-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SOLC-125-02-L-Q-A-K-TR CAD Model

Description

The SOLC-125-02-L-Q-A-K-TR is a rectangular connector from Samtec's FOURRAY™ SOLC series.

  • Connector Type: Receptacle
  • Positions: 100
  • Features: Board Guides, Pick and Place
  • Contact Type: Forked
  • Mounting Type: Surface Mount
  • Fastening Type: Push-Pull
  • Packaging: Tape & Reel
  • Contact Material: Phosphor Bronze
  • Pitch (Mating): 0.050" (1.27mm)
  • Contact Finish (Mating): Gold, 10.0μin (0.25μm)
  • Contact Finish (Post): Gold, 3.00μin (0.076μm)
  • Insulation Color: Black
  • Current Rating: 2.4A per contact
  • Application: Board-to-Board
  • Product Status: Active
