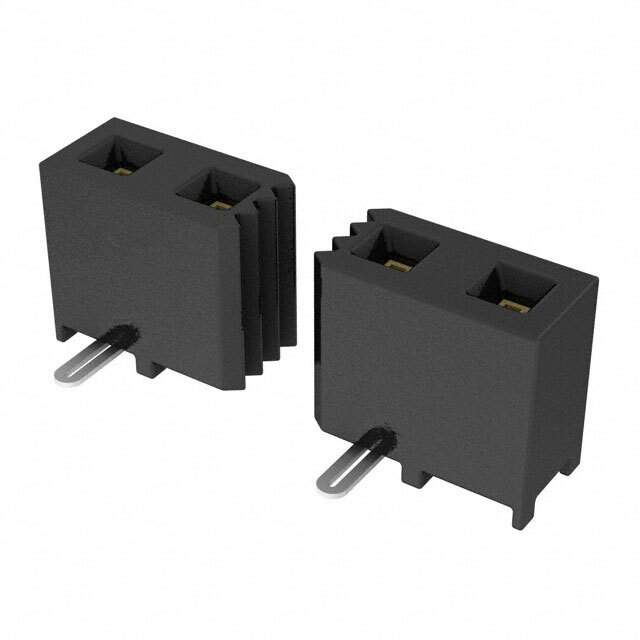

SMM-120-02-S-S Real Image
Same model may have multiple batches, images only for reference.

SMM-120-02-S-S

Part No SMM-120-02-S-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SMM-120-02-S-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SMM
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.140" (3.56mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.2A per Contact
Voltage Rating 350VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SMM-120
Other Names SAM1244-20
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285399-SMM-120-02-S-S
Ultra Librarian 3D Model Ultra Librarian SMM-120-02-S-S CAD Model

Description

The Samtec Inc. Tiger Eye™ SMM is a rectangular connector that has a receptacle type of connector.

  • Connector Series: Tiger Eye™ SMM
  • Connector Type: Receptacle
  • Positions: 20
  • Positions Loaded: All
  • Rows: Single
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Bulk
  • Contact Material: Beryllium Copper
  • Voltage Rating: 350VAC
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 30.0μin (0.76μm)
  • Contact Finish-Post: Tin
  • Insulation Color: Black
  • Row Spacing-Mating: Not applicable
  • Contact Length-Post: Not applicable
  • Insulation Height: 0.140 inches (3.56mm)
  • Contact Shape: Square
  • Temperature Range-Operating: -55 degrees Celsius to 125 degrees Celsius
  • MSL Level: 1 (Unlimited)
  • Current Rating (amps): 3.2A per contact
  • REACH status: REACH Unaffected
  • HTSUS: 8536.69.4040
  • Manufacturer: Samtec Inc.
