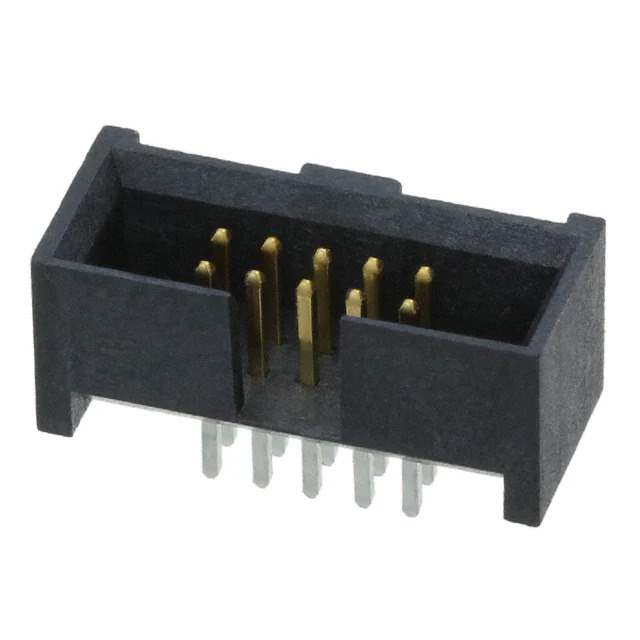

SHF-105-01-L-D-TH Real Image
Same model may have multiple batches, images only for reference.

SHF-105-01-L-D-TH

Part No SHF-105-01-L-D-TH
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 1.27MM / Connector Header Through Hole 10 position 0.050" (1.27mm)
Datasheet
SHF-105-01-L-D-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.075" (1.91mm)
Insulation Height 0.210" (5.33mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-105
Standard Package 45 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 848098-SHF-105-01-L-D-TH
Ultra Librarian 3D Model Ultra Librarian SHF-105-01-L-D-TH CAD Model

Description

The SHF-105-01-L-D-TH is a header connector from Samtec Inc.

  • Series: SHF
  • Positions: 10
  • Rows: 2
  • Contact Gender: Male Pin
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold (Mating Side), Tin (Post Side)
  • Mating Contact Length: 0.120 inches
  • Post Length: 0.075 inches
  • Insulation Height: 0.210 inches
  • Pitch: 0.050 inches (1.27mm)
  • Connection Type: Board-to-Cable/Wire
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Shrouded: Yes, 4 Walls
  • Insulation Color: Black
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C to 125°C
  • Applications: Automotive Systems, Medical Devices
