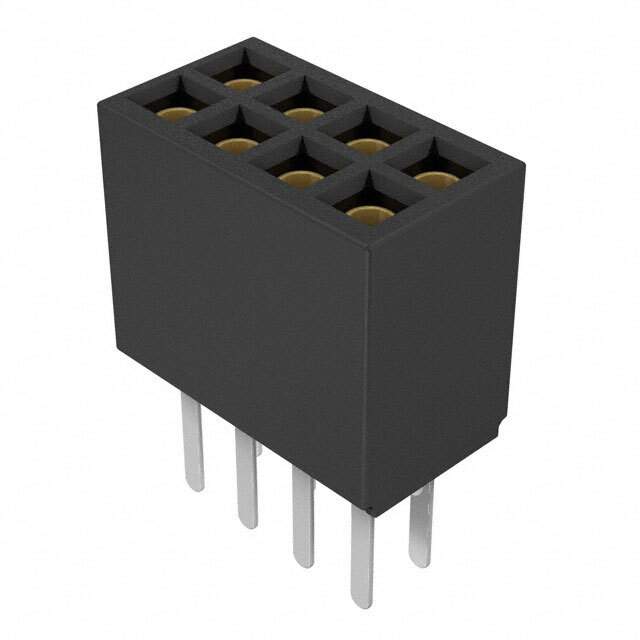

Same model may have multiple batches, images only for reference.

SFMC-104-01-L-D

Name: SFMC-104-01-L-D
Brand: Samtec Inc.
SKU: 1285498
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SFMC-104-01-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFMC-104-01-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFMC
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFMC-104
Other Names	SAM11730,SFMC-104-01-L-D
Standard Package	104
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285498-SFMC-104-01-L-D
Ultra Librarian 3D Model	Ultra Librarian SFMC-104-01-L-D CAD Model

Description

The Samtec Inc.'s connector with Win Source Part Number 1285498-SFMC-104-01-L-D is a rectangular connector that comes in a receptacle type.

Positions: 8
Contact Type: female socket
Positions Loaded: all positions
Rows: two
Termination: solder
Fastening Type: push-pull
Contact Material: beryllium copper
Contact Finish-Mating: gold
Contact Finish Thickness-Mating: 10.0µin (0.25µm)
Contact Finish-Post: tin
Insulation Height: 0.180" (4.57mm)
Temperature Range: -55°C to 125°C
REACH: unaffected
