Same model may have multiple batches, images only for reference.

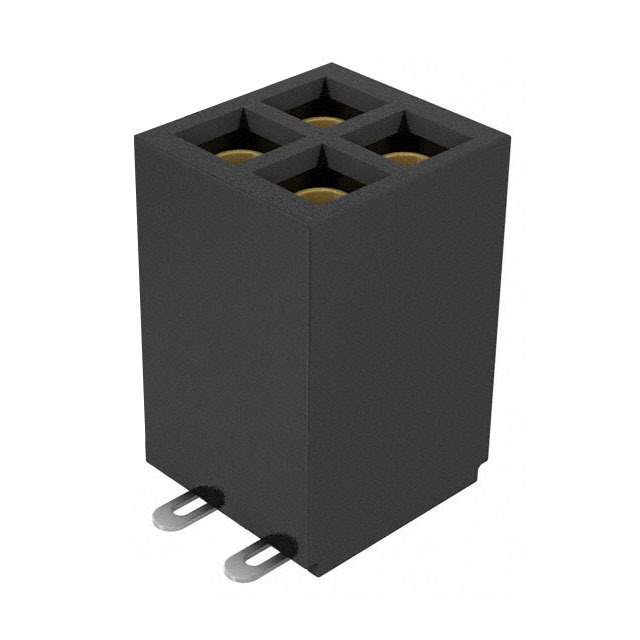

SFMC-102-T2-L-D Real Image
Same model may have multiple batches, images only for reference.

SFMC-102-T2-L-D

Part No SFMC-102-T2-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMC-102-T2-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMC
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SFMC-102
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1286707-SFMC-102-T2-L-D
Ultra Librarian 3D Model Ultra Librarian SFMC-102-T2-L-D CAD Model

Description

The Tiger Eye™ SFMC female socket connector from Samtec Inc. is a high-performance connector designed for use in board to board or cable applications.

  • Positions: 4
  • Pitch: 0.050 inches (1.27mm)
  • Rows: 2
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold with a thickness of 10.0µin (0.25µm) for mating and tin for post
  • Mounting: Surface with a right-angle orientation
  • Packaging: Bulk
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Temperature Range: -55°C to 125°C
  • Current Rating: 2.9A per contact
  • Manufacturer: Samtec Inc.
  • Base Product Number: SFMC-102
