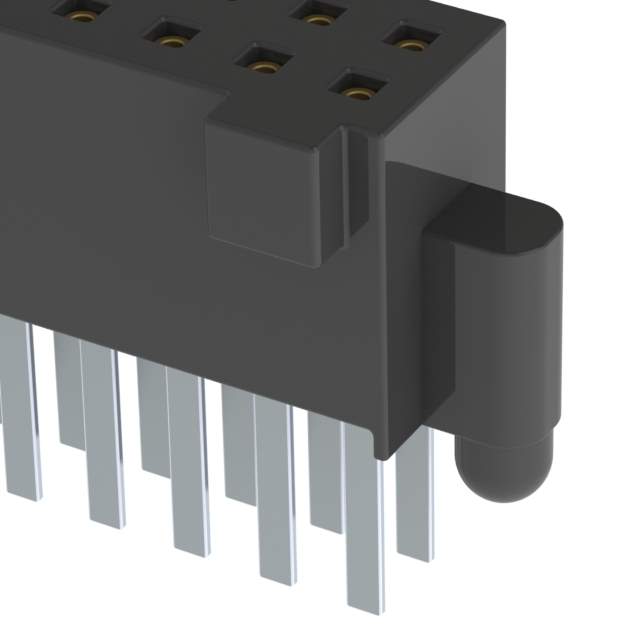

Same model may have multiple batches, images only for reference.

SFM-150-L1-S-D-A

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SFM-150-L1-S-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFM-150-L1-S-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	100
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features	Board Guide
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-150
Standard Package	8
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287158-SFM-150-L1-S-D-A
Ultra Librarian 3D Model	Ultra Librarian SFM-150-L1-S-D-A CAD Model

Alternative Products

Description

The 1287158-SFM-150-L1-S-D-A is a rectangular connector from Samtec Inc. that belongs to the Tiger Eye SFM series.

Series: Tiger Eye SFM
Connector Type: Receptacle
Contact Type: Female Socket
Positions: 100
Positions Loaded: All
Rows: Two
Voltage Rating: 250VAC
Current Rating: 3.2A per contact
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: Gold (30.0µin / 0.76µm)
Mounting Type: Through Hole
Row Spacing-Mating: 0.050" (1.27mm)
Length: 3.00' (914.40mm)
Color: Black
