Name: SFM-145-L3-S-D-LC
Brand: Samtec Inc.
SKU: 1287141
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	90
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.075" (1.91mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features	Board Lock
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-145
Standard Package	9
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287141-SFM-145-L3-S-D-LC
Ultra Librarian 3D Model	Ultra Librarian SFM-145-L3-S-D-LC CAD Model

Description

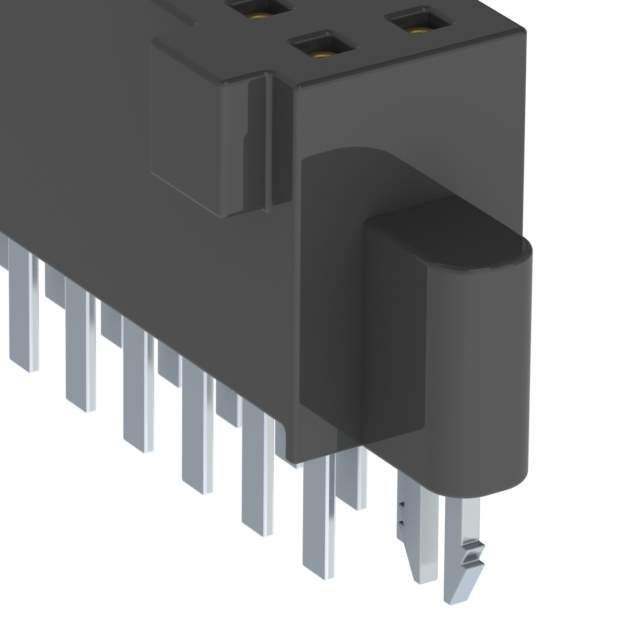

The Samtec Inc. Tiger Eye™ SFM connector is a female socket receptacle with a board lock feature.

Connector Type: Female Socket Receptacle
Feature: Board Lock
Style: Board to Board or Cable
Pitch: 0.050" (1.27mm)
Contact Finish - Mating: Gold with a thickness of 30.0µin (0.76µm)
Contact Finish - Post: Tin
Voltage Rating: 250VAC
Current Rating: 3.2A per contact
Operating Temperature: -55°C ~ 125°C
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.180" (4.57mm)
Mounting Technology: Through Hole
Category: Connectors, Interconnects > Rectangular Connectors - Headers, Receptacles, Female Sockets
Contact Shape: Square
Material Flammability Rating: UL94 V-0
Row Spacing: 0.050" (1.27mm)
Package: Tube
Supply and Demand Status: Balance
Counterfeit Threat: 65%
