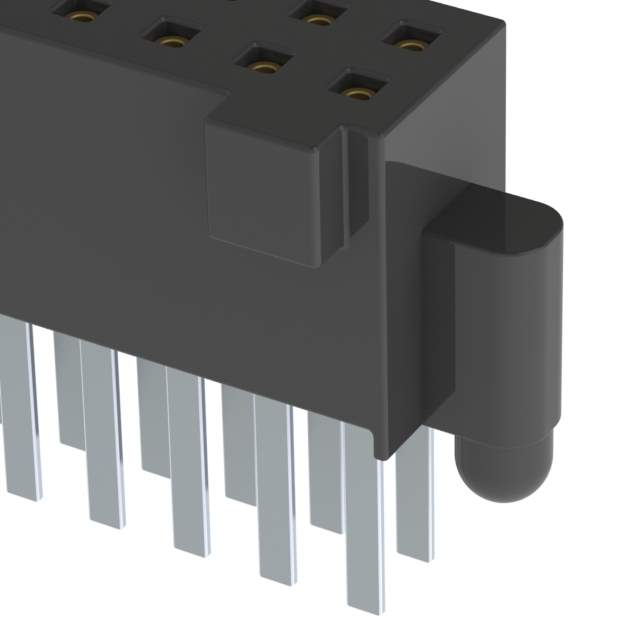

Name: SFM-135-L1-L-D-A
Brand: Samtec Inc.
SKU: 1287075
Availability: InStock

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	70
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features	Board Guide
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-135
Standard Package	12
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287075-SFM-135-L1-L-D-A
Ultra Librarian 3D Model	Ultra Librarian SFM-135-L1-L-D-A CAD Model

Description

The Tiger Eye™ SFM series from Samtec Inc. is a high-quality connector designed for rectangular connectors - headers, receptacles, female sockets.

Board Guide: Yes
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: Two
Termination: Solder
Fastening Type: Push-Pull
Package: Tube
Contact Material: Beryllium Copper
Voltage Rating: 250VAC
Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Color: Black
Mounting: Through-Hole
Pitch (Mating): 0.050" (1.27mm)
Contact Finish (Mating): Gold
Contact Finish Thickness (Mating): 10.0μin (0.25μm)
Contact Finish (Post): Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.180" (4.57mm)
Style: Board-to-Board or Cable
Row Spacing (Mating): 0.050" (1.27mm)
Contact Length (Post): 0.120" (3.05mm)
Contact Shape: Square
Temperature Range: -55°C to 125°C
