The Tiger Eye™ SFM series is a range of connectors that are designed to provide reliable and efficient connection solutions for rectangular connectors.

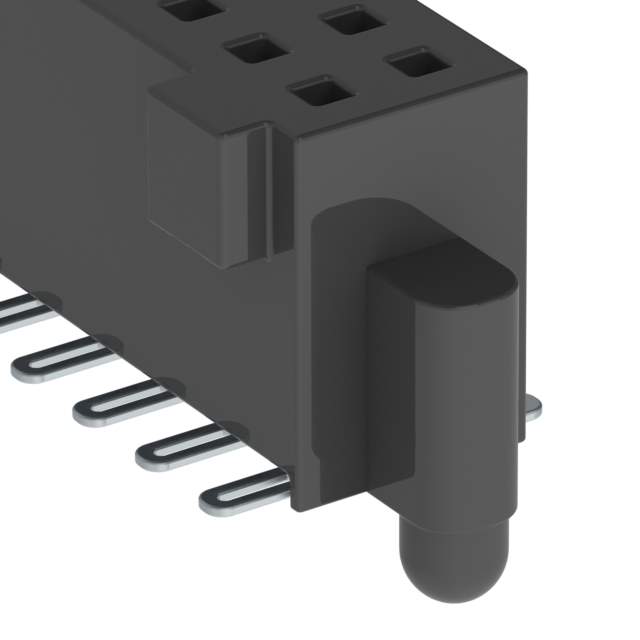

• Description: The SFM-135-02-H-D-A-P-TR connector is a receptacle connector that features 70 positions, two rows, and female socket contacts.
• Voltage Rating: 250VAC.
• Current Rating: 3.2A per contact.
• Applications: The connector is designed for board-to-board or cable applications.
• Pitch: 0.050" (1.27mm).
• Contact Material: beryllium copper.
• Contact Finish: gold.
• Features: The SFM-135-02-H-D-A-P-TR connector is also equipped with board guide and pick and place features, making it easy to install and use.
• Flammability Rating: UL94 V-0.
• Temperature Range: suitable for use in a temperature range of -55°C to 125°C.
• Package: tape and reel (TR).
• Standard Package: 325.
