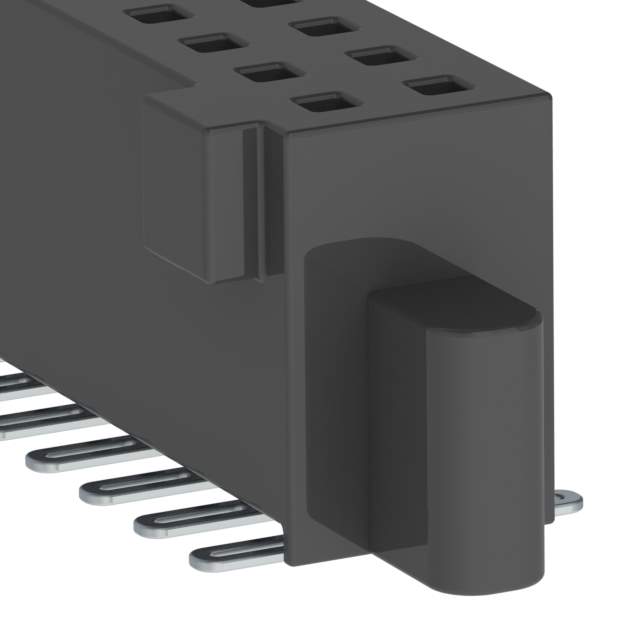

The Samtec Inc. SFM-130-T2-L-D-K-TR is a rectangular connector with a Tiger Eye™ SFM series.

• Positions: 60
• Features: Pick and Place
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: Two
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tape & Reel (TR)
• Contact Material: Phosphor Bronze
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
• Insulation Material: Liquid Crystal Polymer (LCP)
• Flammability Rating: UL94 V-0
• Application: Board to Board or Cable
• Pitch-Mating: 0.050" (1.27mm)
• Finish-Mating: Gold
• Thickness-Mating: 10.0μin (0.25μm)
• Finish-Post: Tin
• Insulation Color: Black
• Row Spacing-Mating: 0.050" (1.27mm)
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Temperature Range: -55°C ~ 125°C
