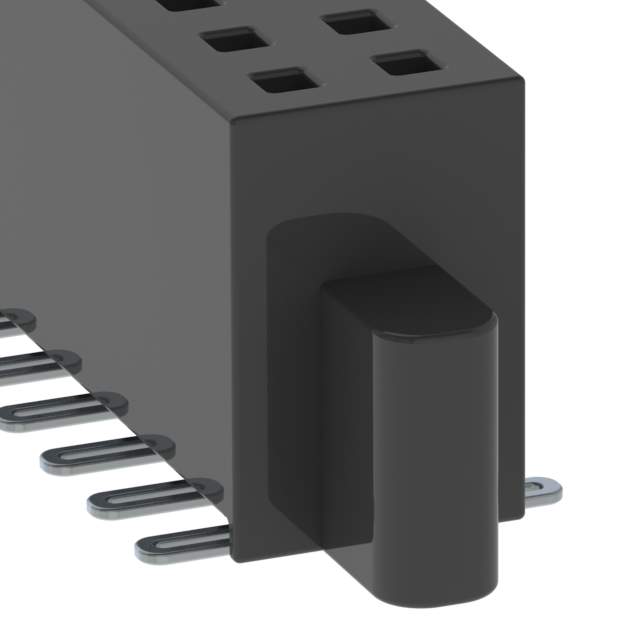

SFM-130-L2-S-D-N Real Image
Same model may have multiple batches, images only for reference.

SFM-130-L2-S-D-N

Part No SFM-130-L2-S-D-N
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFM-130-L2-S-D-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 60
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-130
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287716-SFM-130-L2-S-D-N
Ultra Librarian 3D Model Ultra Librarian SFM-130-L2-S-D-N CAD Model

Description

The SFM-130-L2-S-D-N receptacle connector features 60 positions and two rows, with female sockets for all positions. The Tiger Eye™ SFM series of connectors is a high-performance solution for your interconnect needs, manufactured by Samtec Inc.

  • Positions: 60
  • Rows: Two
  • Contact Type: Female Socket
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold plated
  • Mounting Type: Surface Mount
  • Termination: Solder
  • Mated Stacking Heights: 6.15mm to 11.76mm
  • Voltage Rating: 250VAC
  • Packaging: Bulk
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C and 125°C
