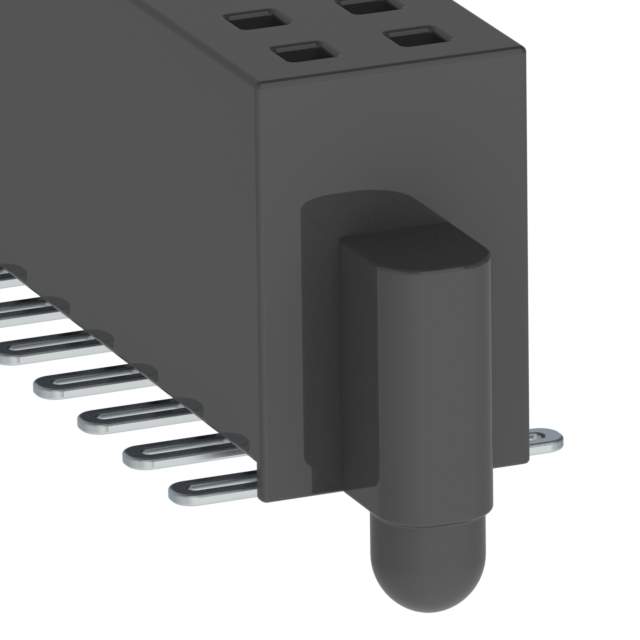

The Samtec Inc. rectangular connector is a high-quality electronic component designed to provide reliable and efficient performance. This connector is part of the Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets category and the Tiger Eye™ SFM series. It has a number of positions of 50, and features board guide and pick and place. The connector type is receptacle, and the contact type is female socket. The number of positions loaded is all, and the number of rows is 2. The termination is solder, and the fastening type is push-pull. The package is tape & reel (TR), and the contact material is beryllium copper. The voltage rating is 250VAC, and the mated stacking heights are 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm. The material flammability rating is UL94 V-0. The standard package is 425, and the mounting is SMD (SMT). The insulation material is liquid crystal polymer (LCP), and the style is board to board or cable. The pitch - mating is 0.050" (1.27mm), and the contact finish - mating is gold. The contact finish thickness - mating is 30.0µin (0.76µm). The contact finish - post is tin, and the insulation color is black. The row spacing - mating is 0.050" (1.27mm). The insulation height is 0.185" (4.70mm), and the contact shape is square. The temperature range - operating is -55°C ~ 125°C. The MSL Level is 1 (Unlimited), and the current rating (amps) is 3.2A per contact. The HTSUS is 8536.69.4040.
