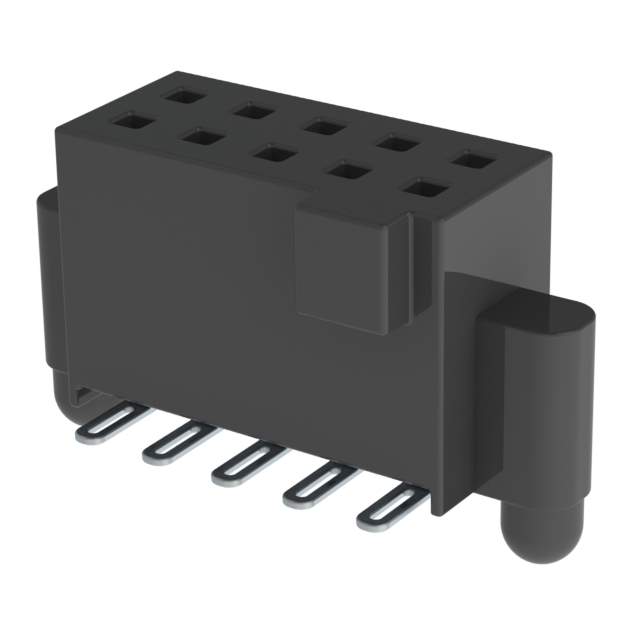

This is a rectangular connector with a part number of 1287199-SFM-105-T2-F-D-A-P-TR. It is part of Samtec Inc.'s Tiger Eye™ SFM series and has 10 positions.

• Positions: 10
• Connector Type: Receptacle
• Contact Type: Female Sockets
• Positions Loaded: All
• Rows: Two
• Termination: Solder
• Fastening Type: Push-pull
• Packaging: Tape and reel
• Standard Package: 125
• Contact Material: Phosphor Bronze
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, and 11.76mm
• Insulation Material: Liquid Crystal Polymer (LCP)
• Pitch-Mating: 0.050" (1.27mm)
• Contact Finish-Mating: Gold with a thickness of 3.00µin (0.076µm)
• Contact Finish-Post: Tin
• Insulation Color: Black
• Row Spacing-Mating: 0.050" (1.27mm)
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Temperature Range: -55°C ~ 125°C
• ECCN: EAR99
• Current Rating: 3.2A per contact
• HTSUS: 8536.69.4040
