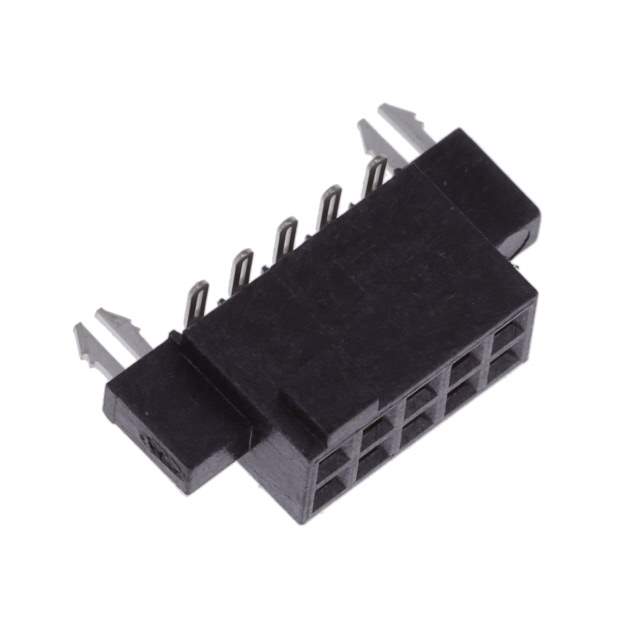

The SFM-105-02-S-D-LC-TR is a surface mount, female connector manufactured by Samtec Inc., part of their SFM series of micro pitch connectors for board-to-board applications. The 'LC' designates the presence of a locking clip for a secure connection, and 'TR' indicates Tape and Reel packaging for automated assembly.

Applications

• High-Speed Data Transmission: Used in applications requiring reliable and high-density connections.
• Industrial Automation: Employed in control systems and data acquisition systems.
• Medical Equipment: Integrated into diagnostic and monitoring equipment.
• Telecommunications: Utilized in networking and communication systems.
• Consumer Electronics: Found in various portable devices.

Features

• Micro Pitch Design: Enables high-density packaging and efficient board space utilization.
• Surface Mount Technology (SMT): Simplifies assembly and reduces manufacturing costs.
• Dual Row Configuration: Provides a high pin count in a compact form factor.
• Locking Clip (LC): Ensures a secure connection, preventing accidental disconnection.
• Tape and Reel Packaging (TR): Facilitates automated pick and place assembly.

Benefits

• Space Saving: The micro pitch design allows for a smaller footprint on the PCB.
• Reliable Connection: The locking clip mechanism ensures a secure and stable connection, even in vibration-prone environments.
• Efficient Assembly: Surface mount design simplifies the soldering process, and tape and reel packaging allows for automated assembly.
• Cost-Effective: Reduced assembly time and costs due to SMT and tape and reel packaging.
• Versatile: Suitable for a wide range of applications requiring compact, reliable, and secure connections.

Additional Details

The SFM-105-02-S-D-LC-TR features 5 pins per row, totaling 10 pins. The 'S' likely relates to the plating type or insulator material/color. This connector mates with Samtec's TFM series headers. Consult the official Samtec datasheet for detailed specifications, including voltage and current ratings, operating temperature range, and mechanical dimensions. Pay close attention to the specifications for the locking clip and tape and reel packaging for proper usage and performance.
