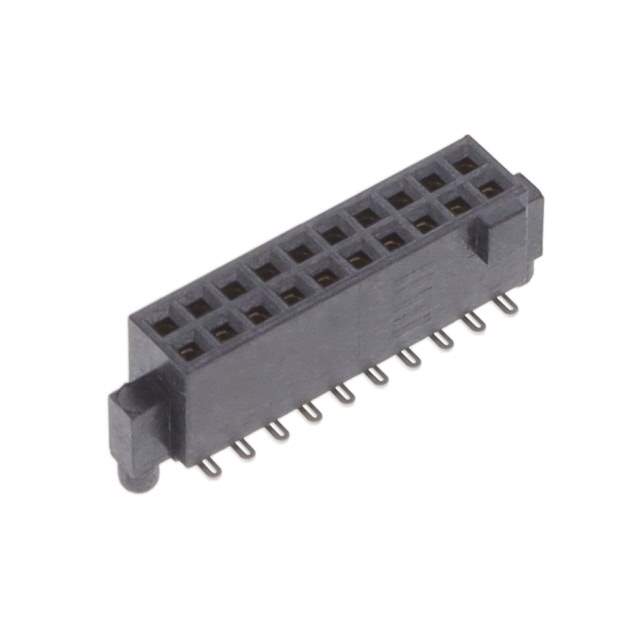

Same model may have multiple batches, images only for reference.

SFC-110-T2-L-D-A-K

Name: SFC-110-T2-L-D-A-K
Brand: Samtec Inc.
SKU: 1287817
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFC-110-T2-L-D-A-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFC-110-T2-L-D-A-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFC
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Guide, Pick and Place
Current Rating (Amps)	3.1A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SFC-110
Standard Package	35
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287817-SFC-110-T2-L-D-A-K
Ultra Librarian 3D Model	Ultra Librarian SFC-110-T2-L-D-A-K CAD Model

Alternative Products

Description

The Tiger Eye™ SFC series female socket connector is a rectangular connector that features a push-pull fastening type and a solder termination.

Fastening Type: Push-Pull
Termination: Solder
Contact Material: Phosphor Bronze
Application: Board-to-Board or Cable
Pitch-Mating: 0.050” (1.27mm)
Voltage Rating: 350VAC
Loaded Positions: All 20
Rows: Two
Features: Board Guide, Pick and Place
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Finish-Mating: Gold
Contact Finish Thickness: 10.0μin (0.25μm)
Package: Tube
Operating Temperature Range: -55°C to 125°C
