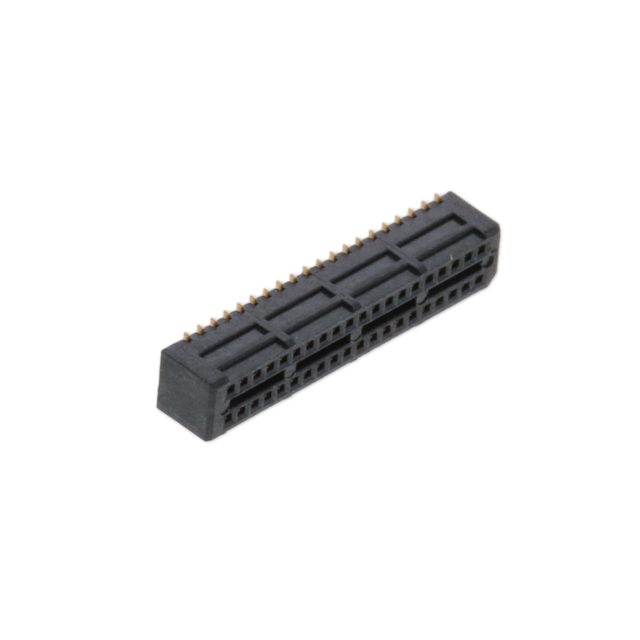

Same model may have multiple batches, images only for reference.

SEMS-120-02-03.0-H-D-K-TR

Name: SEMS-120-02-03.0-H-D-K-TR
Brand: Samtec Inc.
SKU: 1287945
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SEMS-120-02-03.0-H-D-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEMS-120-02-03.0-H-D-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SEMS
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	40
Number of Positions Loaded	All
Pitch - Mating	0.031" (0.80mm)
Number of Rows	2
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.177" (4.50mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Mated Stacking Heights	6mm
Features	Pick and Place
Current Rating (Amps)	2.6A per Contact
Voltage Rating	235VAC, 330VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SEMS-120
Other Names	SAM15081DKR,SAM15081CT,SEMS-120-02-03.0-H-D-K-TR,SAM15081TR
Standard Package	1,225
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287945-SEMS-120-02-03.0-H-D-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEMS-120-02-03.0-H-D-K-TR CAD Model

Alternative Products

Description

The SEMS-120-02-03.0-H-D-K-TR is a rectangular connector from Samtec Inc. It is part of the Tiger Eye SEMS series and has a current rating of 2.6A per contact.

Applications: Connectors and Interconnects
Voltage Rating: High Voltage
Ingress Protection: Low
Style: Board-to-Board
Pitch-Mating: 0.031 inches
