Same model may have multiple batches, images only for reference.

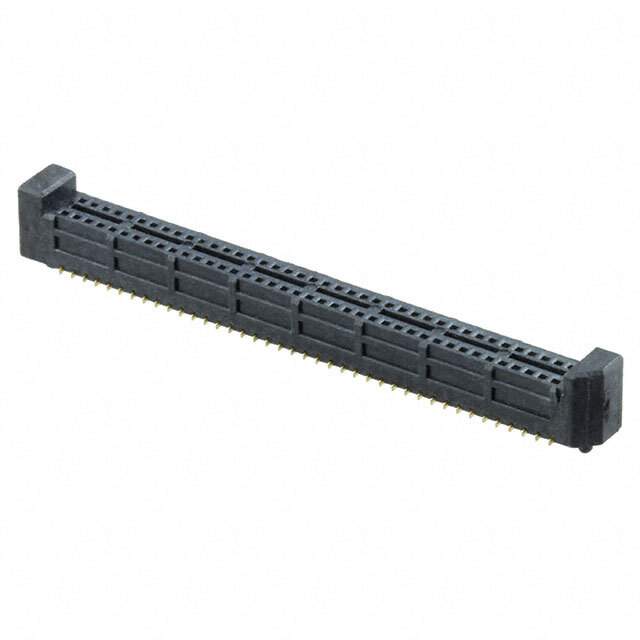

SEM-140-02-03.0-H-D-A Real Image
Same model may have multiple batches, images only for reference.

SEM-140-02-03.0-H-D-A

Part No SEM-140-02-03.0-H-D-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEM-140-02-03.0-H-D-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SEM
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 80
Number of Positions Loaded All
Pitch - Mating 0.031" (0.80mm)
Number of Rows 2
Row Spacing - Mating 0.125" (3.18mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Gold
Mated Stacking Heights 6mm, 7mm, 10mm
Features Board Guide
Current Rating (Amps) 2.6A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Contact Finish Thickness - Post Flash
Base Product Number SEM-140
Other Names SAM11680,SEM-140-02-03.0-H-D-A
Standard Package 68
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287951-SEM-140-02-03.0-H-D-A
Ultra Librarian 3D Model Ultra Librarian SEM-140-02-03.0-H-D-A CAD Model

Description

The Tiger Eye™ SEM series from Samtec Inc. features a 2-row, 80-position receptacle connector with a push-pull fastening type and board guide feature.

  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold (mating and post)
  • Voltage Rating: -
  • Current Rating: 2.6A per contact
  • Mated Stacking Heights: 6mm, 7mm, and 10mm
  • Pitch-Mating: 0.031" (0.80mm)
  • Application: Board-to-board
  • Temperature Range: -55°C to 125°C
  • Package: Tray
  • Standard Package Quantity: 68
