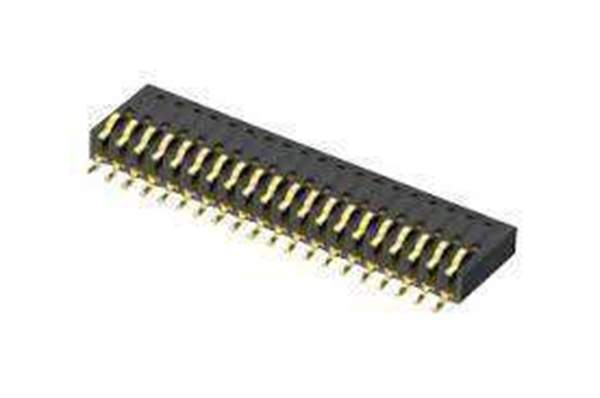

SEI-120-02-G-S-AB-TR Samtec Inc.
Same model may have multiple batches, images only for reference.

SEI-120-02-G-S-AB-TR

Part No SEI-120-02-G-S-AB-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN SPRING MOD 20POS SMD
Datasheet
SEI-120-02-G-S-AB-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305417-SEI-120-02-G-S-AB-TR
Manufacturer Samtec Inc.
Category Connectors, Interconnects Rectangular Connectors Spring Loaded
Packaging  Tape & Reel (TR)
Part Status Active
Connector Type Compression Contact, Non-Gendered
Number of Contacts 20
Pitch (mm) 0.039" (1.00mm)
Mounting Type Surface Mount
Material Phosphor Bronze
Contact Finish Thickness 10.0µin (0.25µm)
Ultra Librarian 3D Model Ultra Librarian SEI-120-02-G-S-AB-TR CAD Model

Description

Board to Board & Mezzanine Connectors 1.00 mm Single Row One-Piece Interface
