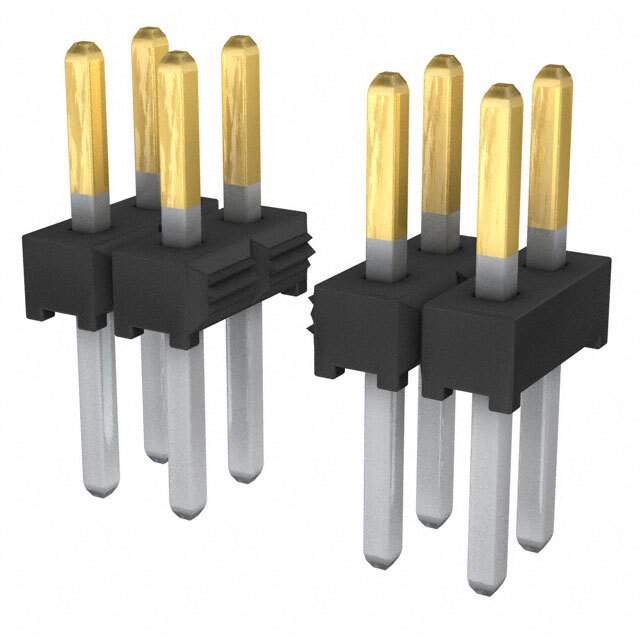

TMM-123-02-L-D

Name: TMM-123-02-L-D
Brand: Samtec Inc.
SKU: 1351605
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-123-02-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2MM TERMINAL STRIP / Connector Header Through Hole 46 position 0.079" (2.00mm)
Datasheet	TMM-123-02-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMM
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	46
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.146" (3.71mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.323" (8.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-123
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1351605-TMM-123-02-L-D
Ultra Librarian 3D Model	Ultra Librarian TMM-123-02-L-D CAD Model

Alternative Products

Description

The TMM-123-02-L-D is a male pin header connector from Samtec Inc.

Connector Type: Board-to-Board or Cable
Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 46
Contact Length - Mating: 0.146" (3.71mm)
Contact Length - Post: 0.118" (3.00mm)
Contact Finish - Mating: Gold, 10.0μin (0.25μm)
Contact Finish - Post: Tin
Current Rating: 3.2A per contact
Operating Temperature: -55°C to 125°C
Mounting Type: Through Hole
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.059" (1.50mm)
Overall Contact Length: 0.323" (8.20mm)
ECCN: EAR99
