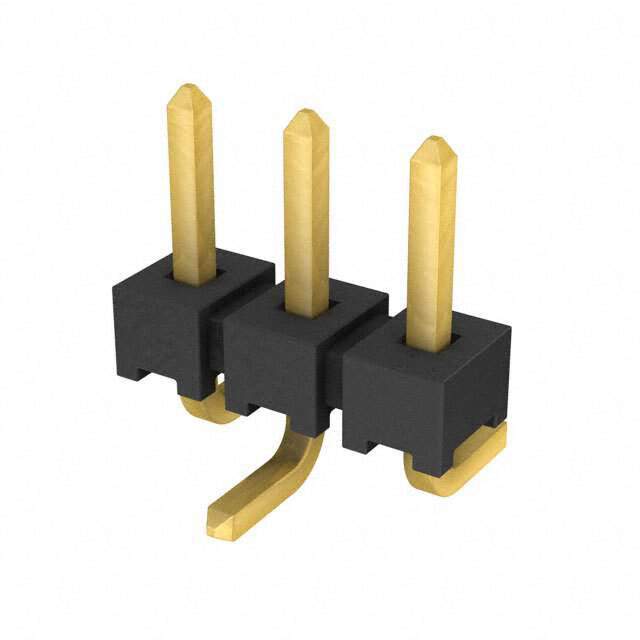

Same model may have multiple batches, images only for reference.

TMM-103-01-G-S-SM

Name: TMM-103-01-G-S-SM
Brand: Samtec Inc.
SKU: 1339217
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMM-103-01-G-S-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 3POS 2MM / Connector Header Surface Mount 3 position 0.079" (2.00mm)
Datasheet	TMM-103-01-G-S-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMM
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	TMM-103
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1339217-TMM-103-01-G-S-SM
Ultra Librarian 3D Model	Ultra Librarian TMM-103-01-G-S-SM CAD Model

Alternative Products

Description

The TMM series male header connector from Samtec Inc. is designed to provide reliable and secure connections in board-to-board or cable applications.

Pitch: 0.079 inches (2.00mm)
Contact Finish: Gold
Current Rating: Up to 3.2A per contact
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Shrouded: Unshrouded
Contact Shape: Square
Temperature Range: -55°C to 125°C
