Same model may have multiple batches, images only for reference.

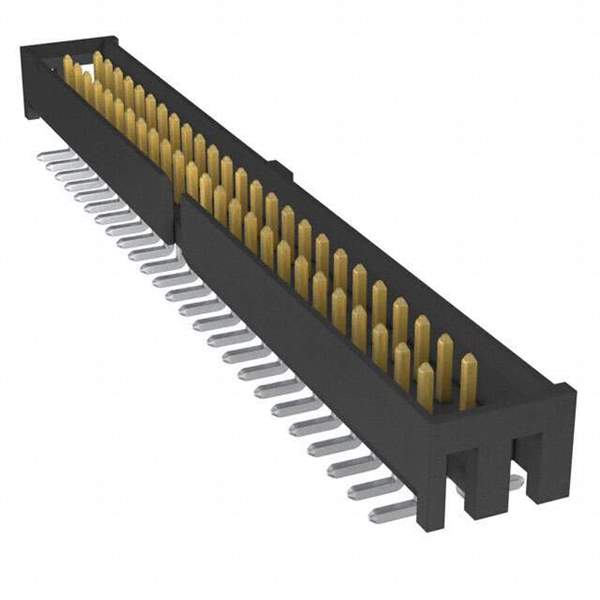

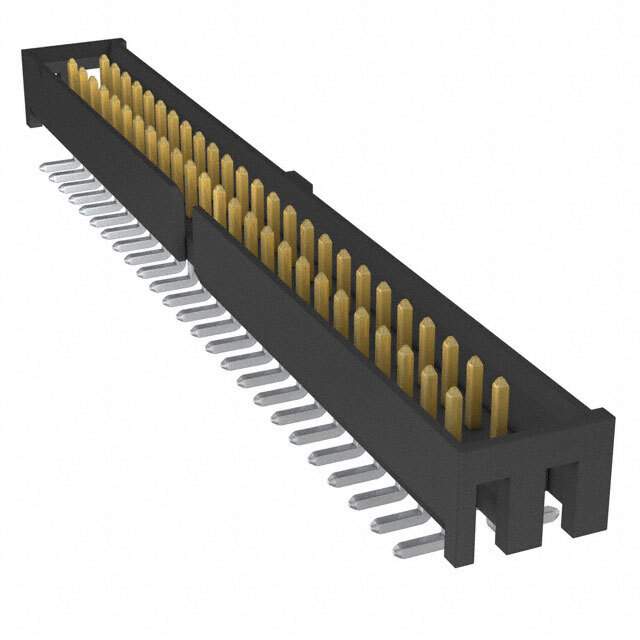

STMM-125-02-S-D-SM

Name: STMM-125-02-S-D-SM
Brand: Samtec Inc.
SKU: 1293181
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	STMM-125-02-S-D-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	STMM-125-02-S-D-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, STMM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	50
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.190" (4.83mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	STMM-125
Other Names	STMM-125-02-S-D-SM,SAM12928
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293181-STMM-125-02-S-D-SM
Ultra Librarian 3D Model	Ultra Librarian STMM-125-02-S-D-SM CAD Model

Alternative Products

Description

The Samtec Inc. STMM-125-02-S-D-SM is a 50-position male pin header connector, part of the Flex Stack series.

Positions: 50
Keying Slot: Yes
Positions Loaded: All
Connector Type: Header
Contact Type: Male Pin
Rows: Two
Termination: Solder
Fastening Type: Push-Pull
Package Type: Tube
Contact Material: Phosphor Bronze
Voltage Rating: Not Specified
Insulation Material: Liquid Crystal Polymer (LCP)
Style: Board to Cable/Wire
Pitch Mating: 0.079 inches (2.00mm)
Contact Finish Mating: Gold
Contact Finish Thickness Mating: 30.0µin (0.76µm)
Contact Finish Post: Tin
Insulation Color: Black
Shrouded: 4 Walls
Row Spacing Mating: 0.079 inches (2.00mm)
Contact Length Mating: 0.120 inches (3.05mm)
Contact Shape: Square
Operating Temperature Range: -55°C to 125°C
Current Rating: 3A
REACH: Unaffected
