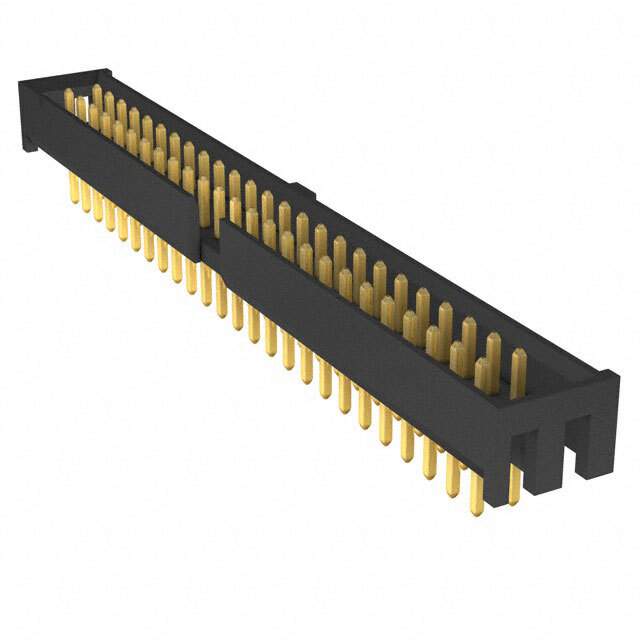

STMM-125-02-G-D

Part No STMM-125-02-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
STMM-125-02-G-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, STMM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.302" (7.67mm)
Insulation Height 0.190" (4.83mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number STMM-125
Other Names SAM15813,STMM-125-02-G-D
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293179-STMM-125-02-G-D
Ultra Librarian 3D Model Ultra Librarian STMM-125-02-G-D CAD Model

Description

The Flex Stack STMM series is a range of male pin headers designed for board to cable/wire connections.

  • Connection Type: Board to Cable/Wire
  • Positions Loaded: 50
  • Rows: 2
  • Pitch Mating: 0.079 inches (2.00mm)
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish (Post): Gold
  • Contact Shape: Square
  • Contact Length: 0.302 inches (7.67mm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Height: 0.190 inches (4.83mm)
  • Termination Type: Solder
  • Housing: Shrouded-4 Wall
  • Operating Temperature: -55°C to 125°C
  • Manufacturer: Samtec Inc.
  • Series: STMM-125
