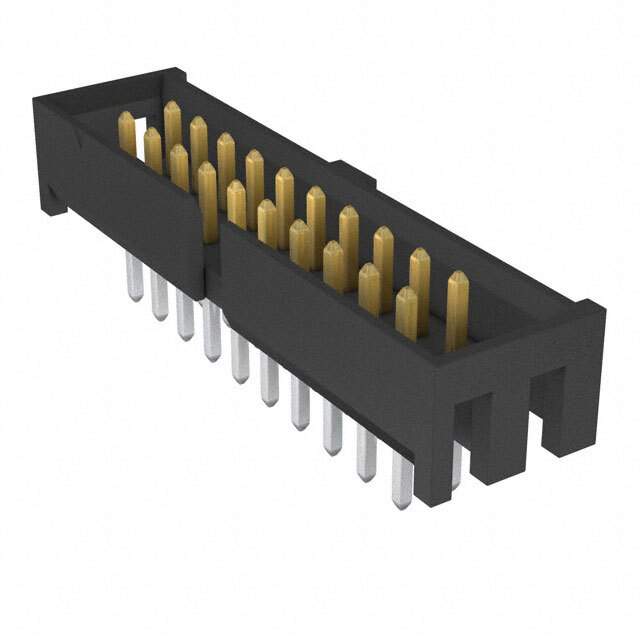

STMM-110-02-L-D Real Image
Same model may have multiple batches, images only for reference.

STMM-110-02-L-D

Part No STMM-110-02-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
STMM-110-02-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, STMM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.302" (7.67mm)
Insulation Height 0.190" (4.83mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number STMM-110
Other Names SAM10043
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293195-STMM-110-02-L-D
Ultra Librarian 3D Model Ultra Librarian STMM-110-02-L-D CAD Model

Description

The Flex Stack, STMM series by Samtec Inc. presents the STMM-110-02-L-D header connector, which is a rectangular connector with two rows of male pins.

  • Rows: 2
  • Contact Type: Male Pins
  • Positions Loaded: 20
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Pitch: 2.00mm
  • Mating Height: Not specified
  • Current Rating: 3A
  • Fastening Type: Push-Pull
  • Termination: Soldered
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Temperature Range: -55°C to 125°C
  • Application: Board-to-cable/wire
  • Shrouding: Shrouded with 4 walls
  • Mounting Type: Through-Hole
