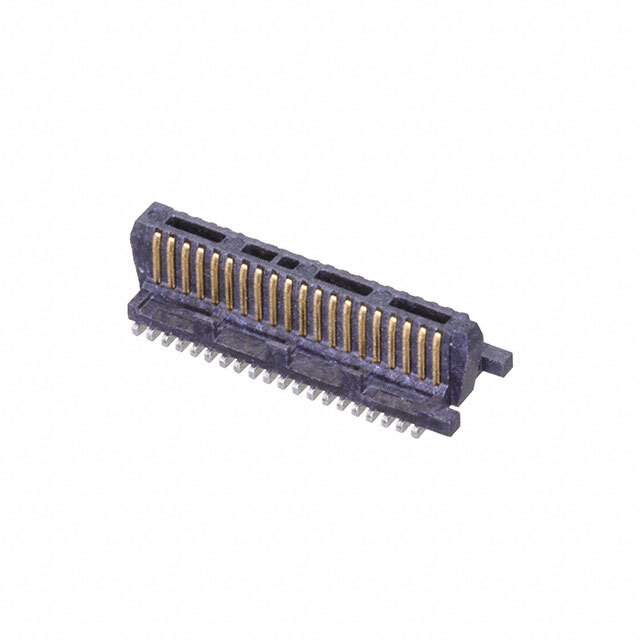

ST5-20-1.00-L-D-P-TR

Name: ST5-20-1.00-L-D-P-TR
Brand: Samtec Inc.
SKU: 1293953
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ST5-20-1.00-L-D-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	ST5-20-1.00-L-D-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ ST5
Package	Tape & Reel
Connector Type	Header, Center Strip Contacts
Number of Positions	40
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	4mm, 4.5mm
Height Above Board	0.121" (3.07mm)
Base Product Number	ST5-20
Other Names	SAM14641DKR,SAM14641TR,ST5-20-1.00-L-D-P-TR,SAM14641CT,ST5-20-1.00-L-D-P-FR
Standard Package	1,200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293953-ST5-20-1.00-L-D-P-TR
Ultra Librarian 3D Model	Ultra Librarian ST5-20-1.00-L-D-P-TR CAD Model

Alternative Products

Description

The ST5-20-1.00-L-D-P-TR from Samtec Inc. is a rectangular connector used for arrays, edge type, and mezzanine (board to board) connections.

Pitch: 0.020" (0.50mm)
Features: Pick and place
Connector Type: Header with center strip contacts
Positions: 40
Rows: 2
Contact Finish: Gold
Thickness: 10.0µin (0.25µm)
Package: Tape and reel
Standard Package: 1,200 units
Mated Stacking Heights: 4mm and 4.5mm
Height Above Board: 0.121" (3.07mm)
ECCN: EAR99
MSL Level: 1, which means it has an unlimited shelf life
REACH status: Unaffected
HTSUS code: 8536.69.4040
Win Source Part Number: 1293953-ST5-20-1.00-L-D-P-TR
Series: Razor Beam™ ST5
